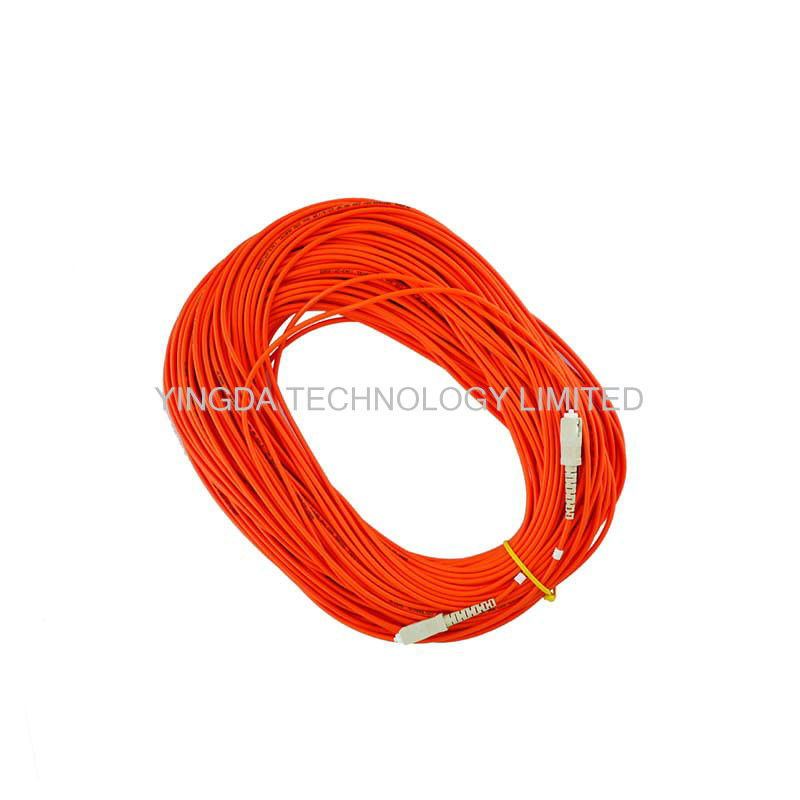

LSZH Fiber Optic Patch Cord SC - SC With Simplex Beige Housing Orange / Corning Fiber Cable

China LSZH Fiber Optic Patch Cord SC - SC With Simplex Beige Housing Orange / Corning Fiber Cable supplier
LSZH Fiber Optic Patch Cord SC - SC With Simplex Beige Housing Orange / Corning Fiber Cable supplier LSZH Fiber Optic Patch Cord SC - SC With Simplex Beige Housing Orange / Corning Fiber Cable supplier LSZH Fiber Optic Patch Cord SC - SC With Simplex Beige Housing Orange / Corning Fiber Cable supplier LSZH Fiber Optic Patch Cord SC - SC With Simplex Beige Housing Orange / Corning Fiber Cable supplier

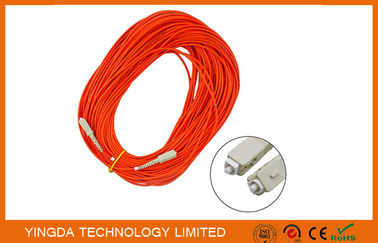

Large Image :  LSZH Fiber Optic Patch Cord SC - SC With Simplex Beige Housing Orange / Corning Fiber Cable

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: YINGDA
Certification: ISO SGS ROHS
Model Number: SCSC-MMSX-30-2mm

Payment & Shipping Terms:

Minimum Order Quantity: 500 pcs
Price: negotiable
Packaging Details: 1 pc / plastic bag
Delivery Time: 5-8days after payment
Supply Ability: 15,000 pcs / day
Contact Now
Detailed Product Description
Connector: SC To SC Patch Cord Fiber Count: Simplex
Insertion Loss: < 0.3 DB Return Loss: >35dB Pc
Fiber Length: 30meter Cable Diameter: 2.0mm
Cable Color: Orange Connector Color: Beige
Fiber Type: Multimode 50/125um

SC to SC Mulitmode Fiber Optic  Patch Cord Simplex Beige Housing Orange Cable
LSZH Corning Fiber


Fiber jumper (also called optical fiber connector) have connectors on both ends, used to achieve the
optical path movable connected; If only one end with connectors called pigtail. Optical fiber jumper
(Optical Fiber Patch Cord/Cable) and similar to coaxial cable, but no have net shielding layer. The
center is the light transmission glass core(ferrule). In multimode fibers, the diameter of the core is
50 mu m~65 mu m, roughly equal to the human hair thickness. While the single mode fiber core
diameter is 8u m~10u m. The core is surrounded by a layer of glass coating whose refractive index
is lower than the core, in order to make the optical fiber holding in the core. Outside is a thin layer
of plastic jacket to protect the coating.

According to the transmission media Fiber jumper can be divided into single mode, multimode optical
fiber jumper, and other transmission media such as plastic jumper. According to connector type, it can
be divided into: FC jumper, ST jumper, SC jumper, LC jumper, MTRJ patch cord, MPO patch cord jumper,
also MU, SMA, FDDI, E2000, DIN4 D4 jumper and so on. Most commonly used is FC-FC, FC-SC, FC-LC,
FC-ST, SC-SC, SC-ST fiber optic patch cord.

Multimode fiber (Multi-mode Fiber):
 the fiber patch cable is orange, connector and housing beige; short distance transmission.

Features

  • Low insertion loss
  • Repeat ability
  • High return loss
  • Mutual Insert performance
  • Good temperature stability
  • Strong tensile property
  • Cheap multimode fiber price,short distance transmission
  • Wide transmission bandwidth


Specification


Item

Standard,Master

Connector type

LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,
FC/APC,LC/APC.MU/APC

Duplex MTRJ/Female, MTRJ/Male

Fiber Type



9/125 SMF-28 or equivalent (Singlemade) OS1

50/125, 62.5/125 (Multimode) OM2&OM1

50/125, 10G  (Multimode) OM3

Cable Type

Simplex, Duplex (Zipcord)

Φ3.0mm, Φ2.0mm, Φ1.8mm

Φ1.6mm PVC or LSZH

Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH

Polishing Manner

UPC,SPC,APC (8°& 6°)

Insertion Loss

≤ 0.1dB (For Singlemode Master)

≤ 0.25dB (For Singlemode Standard)

≤ 0.25dB (For Multimode)

Tested by JDS RM 3750


Return Loss (For Singlemode)

UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750

Repeatability

 ±0.1dB

Operating temperature

-400C to 850C


Geometry Requirement
(For Singlemode)

Ferrule Endface Radius

7mm ≤ R ≤ 12mm (For APC)

10mm ≤ R ≤ 25mm (For Standard)

Apex Offset ≤ 30 μm (For Master)

Apex Offset ≤ 50 μm (For Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1



Application

  1. Fiber communication system
  2. Fiber access network
  3. Data transmission
  4. CATV
  5. LAN
  6. Test equipment
  7. Optical fiber sensor


Ordering information


Boot (cable size)

Boot Color

Fiber Type

Cable number

Ferrule

Length

0.9mm
2.0mm
3.0mm

Black
Biege
Blue
Gray
White
Yellow

9/125um SM
50/125um MM
62.5/125um MM
OM3
OM4

Simplex
Duplex
Multi-fiber

PC
APC

Customized



Cable color and the connector house can be cusotmized:



LSZH Fiber Optic Patch Cord SC - SC With Simplex Beige Housing Orange / Corning Fiber CableLSZH Fiber Optic Patch Cord SC - SC With Simplex Beige Housing Orange / Corning Fiber CableLSZH Fiber Optic Patch Cord SC - SC With Simplex Beige Housing Orange / Corning Fiber Cable
