Small FTTH Passive Fiber Optic PLC Splitter 1X16 SC SM 2.0mm High Stability

China Small FTTH Passive Fiber Optic PLC Splitter 1X16 SC SM 2.0mm High Stability supplier
Small FTTH Passive Fiber Optic PLC Splitter 1X16 SC SM 2.0mm High Stability supplier Small FTTH Passive Fiber Optic PLC Splitter 1X16 SC SM 2.0mm High Stability supplier Small FTTH Passive Fiber Optic PLC Splitter 1X16 SC SM 2.0mm High Stability supplier Small FTTH Passive Fiber Optic PLC Splitter 1X16 SC SM 2.0mm High Stability supplier Small FTTH Passive Fiber Optic PLC Splitter 1X16 SC SM 2.0mm High Stability supplier

Large Image :  Small FTTH Passive Fiber Optic PLC Splitter 1X16 SC SM 2.0mm High Stability

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: YINGDA
Certification: ISO SGS ROHS
Model Number: YD-PLC-MM116-SC-15-20

Payment & Shipping Terms:

Minimum Order Quantity: 50 pcs
Price: negotiable
Packaging Details: 1PC/BOX
Delivery Time: 5-8days after payment
Supply Ability: 10,000 pcs per month

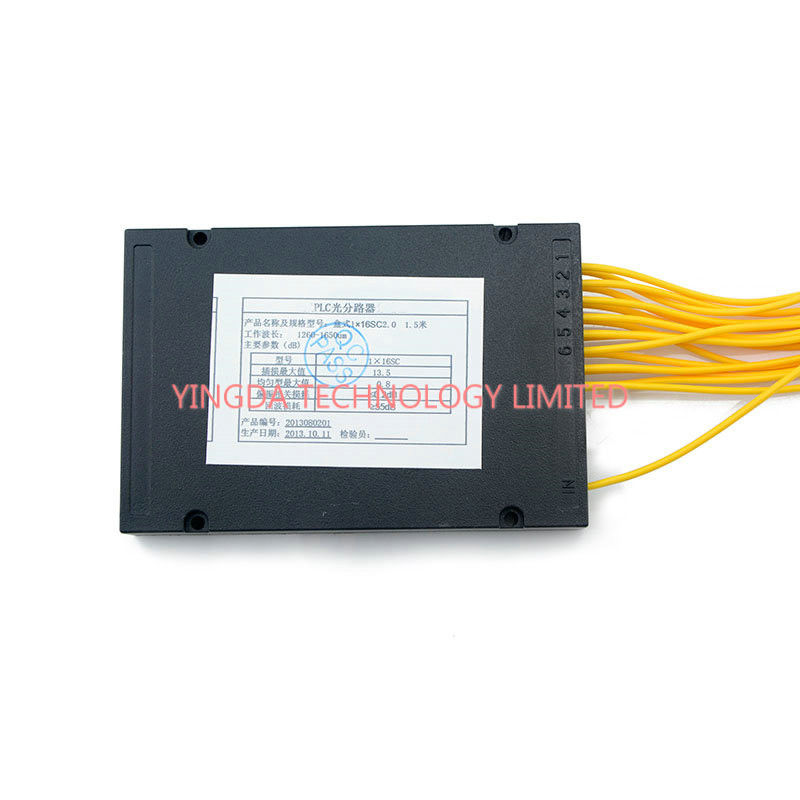

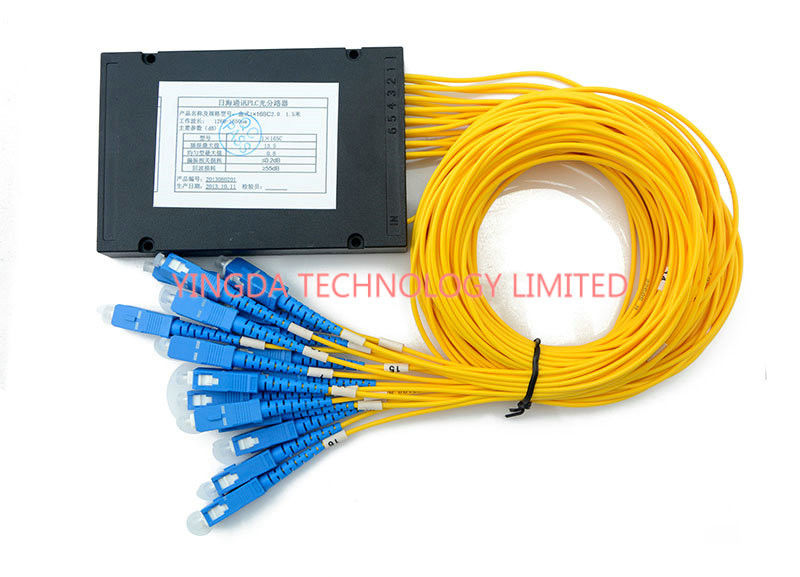

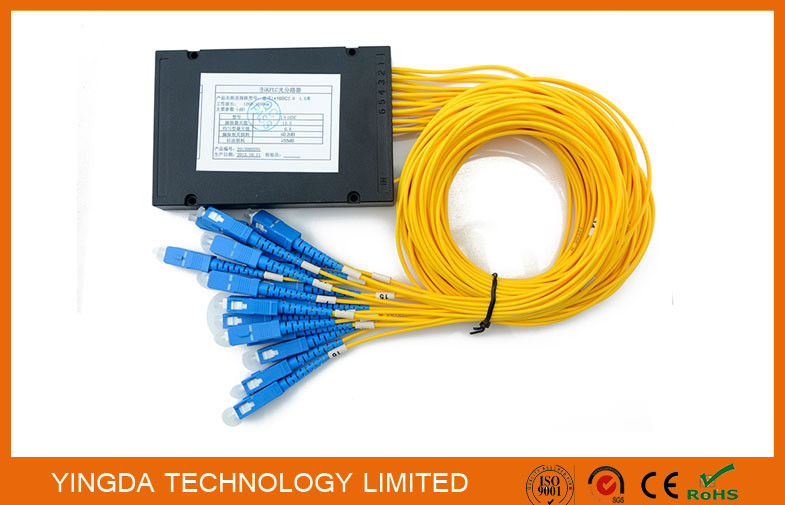

Detailed Product Description

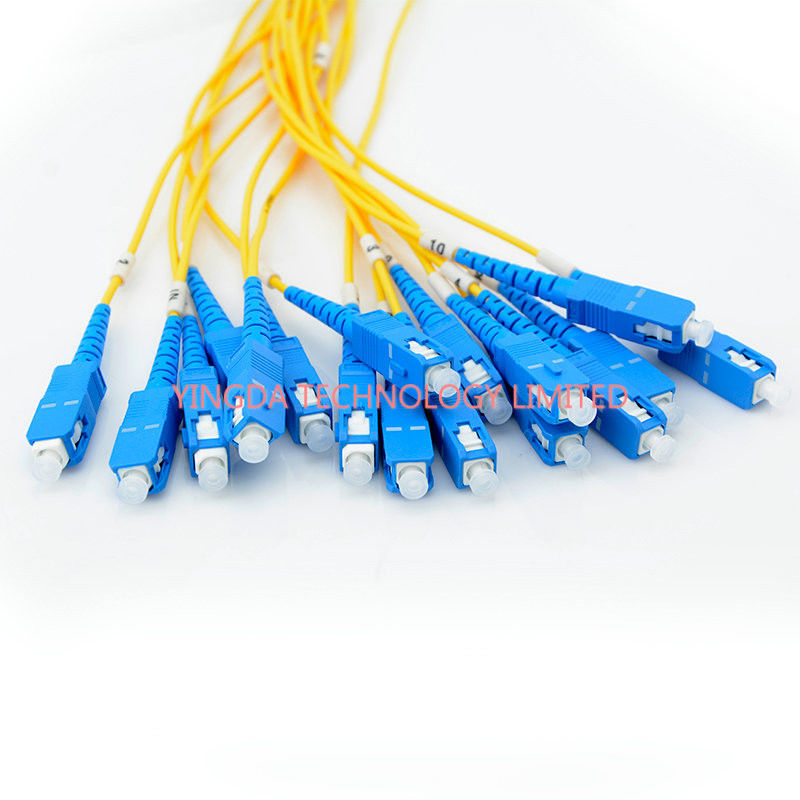

Connector: SC / UPC Fiber Type2: Corning Fiber SMF-28e
Insertion Loss: 13.5 DB Uniformity (Max.): 1.2 DB
Wavelength: 1260-1650nm PDL(Max.): 0.25 DB
Plastic Box Module: 120*80*18 Mm Fiber Length: 1.5 Meter
Cable Diameter: 2.0mm Split Ratio: 1x16 PLC Splitter

FTTH Passive Fiber Optic PLC Splitter Moule 1X16 SC SM 2.0mm Plastic Box Splitter​





 Planar Lightwave Circuits (PLC) Optical Splitter are fully passive optical branching devices that exhibit very low inertion loss and PDL, great channel uniformity and a wide wavelength perative range.

These splitters are manufactrued and tested to Telcordia-1209-core & GR-1221-core to provide high performance,specifically designed to meet the tough requirement of FTTH,PON and CATV networks.



Applications


* FTTH,FTTC,FTTB
* Passive Optical Networks(PON)
* CATV networks and data communications
* Fiber optic equipment and systems



Features


* High uniformity
* Low insertion loss
* Compact & small size
* High reliability and stability
* Optional input & output



PLC Specification
Wavelength(nm) 1260-1650
Parameters 1×4 1×8 1×16 1×32 1×64 2×4 2×8 2×16 2×32

Insertion Loss

(with connector)(dB)

≤7.4 ≤10.7 ≤13.7 ≤16.9 ≤21 ≤7.8 ≤11.5 ≤14.5 ≤17.7

Insertion Loss

(W/O connector)(dB)

≤7.7 ≤11.2 ≤14.2 ≤17.5 ≤21.5 ≤8.3 ≤12 ≤15 ≤18.2
Uniformity (dB) ≤0.8 ≤1.0 ≤1.4 ≤1.9 ≤2.7 ≤1.7 ≤1.7 ≤2.2 ≤2.7
PDL(dB) ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.4 ≤0.2 ≤0.4 ≤0.4 ≤0.4
Size(Blocklesstype) (H×W×L)(mm) 4×7×60 4×12×60 6×20×80 6×40×100 4×7×60 4×12×60 6×20×80
Return Loss(dB) >50
Directivity(dB) >55
TemperatureRange(°C) -40~+75
Storage Temperature(°C) -40~+85



2×N (N>2) (Without connector)



parameters

2×4

2×8

2×16

2×32

1

Operation

wavelength(nm)

1260~1650

2

Insertion loss(dB)

Max

7.8

11.2

14.2

17.4

3

Loss uniformity(dB)

Max

1.2

1.5

1.8

2.0

4

Return loss(dB)

Min

55

55

55

55

5

PLD(dB)

Max

0.2

0.3

0.4

0.4

6

Directivity(dB)

Min

55

55

55

55

7

Wavelength dependent loss(dB)

0.4

0.4

0.5

0.5

8

Pigtail length(m)

1.2(±0.1) or customer specified

9

Fiber type

Cusomization

10

Operation temperature(°C)

-40~85

11

Storage temperature(°C)

-40~85

12

Dimension (L×W×H) (mm)

50×4×4

50×4×4

60×7×4

60×7×4



Note: All measurement were done at room temperature and specification include connectors.



Small FTTH Passive Fiber Optic PLC Splitter 1X16 SC SM 2.0mm High StabilitySmall FTTH Passive Fiber Optic PLC Splitter 1X16 SC SM 2.0mm High StabilitySmall FTTH Passive Fiber Optic PLC Splitter 1X16 SC SM 2.0mm High StabilitySmall FTTH Passive Fiber Optic PLC Splitter 1X16 SC SM 2.0mm High StabilitySmall FTTH Passive Fiber Optic PLC Splitter 1X16 SC SM 2.0mm High StabilitySmall FTTH Passive Fiber Optic PLC Splitter 1X16 SC SM 2.0mm High Stability
