GPON Single Mode Fiber Optic PLC Splitter 1x 8 , PLC Splitter Module SC 1.5M

China GPON Single Mode Fiber Optic PLC Splitter 1x 8  ,  PLC Splitter Module SC 1.5M supplier
GPON Single Mode Fiber Optic PLC Splitter 1x 8  ,  PLC Splitter Module SC 1.5M supplier GPON Single Mode Fiber Optic PLC Splitter 1x 8  ,  PLC Splitter Module SC 1.5M supplier GPON Single Mode Fiber Optic PLC Splitter 1x 8  ,  PLC Splitter Module SC 1.5M supplier GPON Single Mode Fiber Optic PLC Splitter 1x 8  ,  PLC Splitter Module SC 1.5M supplier

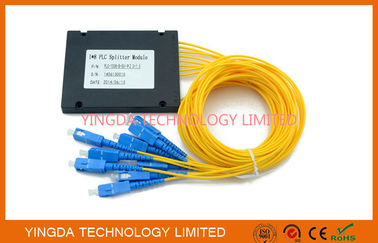

Large Image :  GPON Single Mode Fiber Optic PLC Splitter 1x 8 , PLC Splitter Module SC 1.5M

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: YINGDA
Certification: ISO SGS ROHS
Model Number: YD-PLC-MM-108-SC-15

Payment & Shipping Terms:

Minimum Order Quantity: 50 pcs
Price: negotiable
Packaging Details: 1pc/ box,5pcs/carton box
Delivery Time: 5-8days after payment
Supply Ability: 10,000 pcs per month
Contact Now
Detailed Product Description
Connector: SC/UPC Fiber Type: Single Mode G657A1
Insertion Loss: 10.5dB Uniformity (Max.): 1.5dB
Wavelength: 1260 - 1650 Nm PDL(Max.): 0.3dB
Module Size: 100×80×10mm Square Tube Size: 40×4×4mm
Flat Tube Size: 60×7×4mm

1x8 Fiber Optic PLC Splitter Module, Optical Splitter Module SC 1.5M





Description



Fiber optical plc splitter modules is a type of optical power management device that is fabricated

using silica optical waveguide technology. It features small size, high reliability, wide operating

wavelength range and good channel-to-channel uniformity, and is widely used in PON networks

to realize optical signal power splitting.



YINGDA provides whole series of 1xN and 2xN splitter products that are pre-terminated for specific

applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.



Application

  1. FTTX Systems
  2. PON Networks
  3. CATV Links
  4. Optical Signal Distribution



Feature

  • Low Insertion loss
  • Low PDL
  • Compact Design
  • Good channel-to-channel uniformity
  • Wide Operating Wavelength:From 1260nm to 1650nm
  • Wide Operating Temperature: From -40°C to 85°C
  • High Reliability and Stability



Compliance

  1. Telcordia GR-1209-CORE
  2. Telcordia GR-1221-CORE
  3. RoHS

Black ABS box plc splitter Specification:

Type

1×2

1×4

1×8

1×16

1×32

1×64

Operating Wavelength

 (nm)

 1260~1650

Fiber type

G657A or as customers’ request

Insertion Loss(dB)

( S/P)

 4.0/3.8

 7.3/7.0

 10.5/10.2

13.7/13.5

16.9/16.5

21.0/20.5

Return Loss(dB)

 (S/P)

50/55

50/55

50/55

50/55

50/55

50/55

Polarization Dependent

 Loss (dB)

0.2

0.2

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

Wavelength Dependent

 Loss (dB)

0.3

0.3

0.3

0.5

0.5

0.5

Temperature Stability

 (-40~85 °C)(dB)

0.5

0.5

0.5

0.5

0.5

0.5

Operating

Temperature(°C)

-40~85

Storage

Temperature(°C)

-40~85

Square Tube (mm)

40×4×4

40×4×4

40×4×4

50×4×4

50×7×4

60×12×4

Box (mm)

100×80×10

100×80×10

100×80×10

120×80×18

140×115×18

140×115×18

Flat Tube (mm)

60×7×4

60×7×4

60×7×4

60×12×4

80×20×6

N/A





GPON Single Mode Fiber Optic PLC Splitter 1x 8  ,  PLC Splitter Module SC 1.5MGPON Single Mode Fiber Optic PLC Splitter 1x 8  ,  PLC Splitter Module SC 1.5MGPON Single Mode Fiber Optic PLC Splitter 1x 8  ,  PLC Splitter Module SC 1.5MGPON Single Mode Fiber Optic PLC Splitter 1x 8  ,  PLC Splitter Module SC 1.5MGPON Single Mode Fiber Optic PLC Splitter 1x 8  ,  PLC Splitter Module SC 1.5MGPON Single Mode Fiber Optic PLC Splitter 1x 8  ,  PLC Splitter Module SC 1.5MGPON Single Mode Fiber Optic PLC Splitter 1x 8  ,  PLC Splitter Module SC 1.5M
