Fiber Optic Patch Cord E2000

China Fiber Optic Patch Cord E2000 supplier
Fiber Optic Patch Cord E2000 supplier Fiber Optic Patch Cord E2000 supplier Fiber Optic Patch Cord E2000 supplier

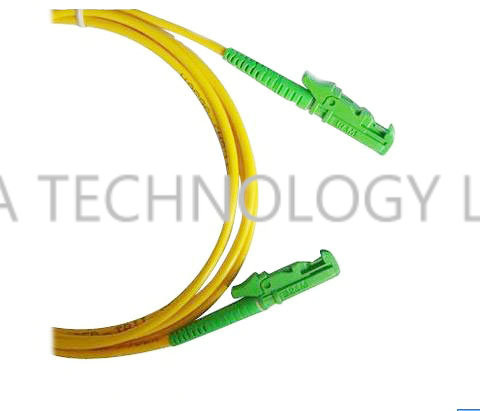

Large Image :  Fiber Optic Patch Cord E2000

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: YINGDA
Certification: ISO SGS ROHS
Model Number: FPC-EAEA-SX-30-01

Payment & Shipping Terms:

Minimum Order Quantity: 500 pcs
Price: negotiable
Packaging Details: 1 pc/ box, 200pcs / carton box
Delivery Time: 7days after payment
Payment Terms: Western Union, T/T
Supply Ability: 60,000 pcs per month
Contact Now
Detailed Product Description
Connector: E2000/APC Fiber Count: Duplex Or Simplex
Insertion Loss: <0.3dB Cable Length: 1meter
Cable Diameter: 2.0mm Fiber Type: Singlemode SM 9/125um
Package: 1pc / Plastic Bag Cable Color: Yellow
Return Loss: >60dB APC Connector House Color: Green

FTTH 100% Test Fiber Optic Patch Cord E2000 / APC - E2000 / APC Jumper





E2000 Fiber optic patch cord is a premium connector that offers superior performance.

The new metal protection shutters make the E2000 connectors system conforms to the

highest safety requirement in all current laser classes. The E2000 fiber optic patch cord

has several applicaiton like premise installations, data processing networks,

telecommunication networks and active device terminations.



The E2000 fiber optic patch cord has insertion loss<0.1dB. APC return loss >85dB

making this connector system ideal for high performance networks. We provide simplex

and duplex fiber optic patch cords in various boot(cable) size, also pigtails and fan-out

patch cords are available.





Feature

  • Low insertion loss
  • High return loss
  • Good exchangeability
  • Good durability
  • High temperature stability
  • Telcordia GR-326-CORE
  • ROSH compliant



Application

  1. Fiber Optic Telecommunications
  2. LAN (Local Area Network
  3. FTTH (Fiber To The Home)
  4. CATV&CCTV
  5. High speed transmission systems
  6. Fiber optic sensing



Specification



Parameter

Single mode

Multimode

Insertion loss

Typical ≤ 0.2dB, Max. ≤ 0.3dB

≤ 0.25dB

Return loss

≥ 50dB(PC) ; ≥ 65dB(APC)

≥ 30dB

Repeatability

≤0.1

Durability

≤0.2dB typical change,1000 matings

Interchangeability

≤0.2dB

Tensile strength operating temperature

>10kg -40 to 85C

-40~85C



Fiber Optic Patch Cord E2000
