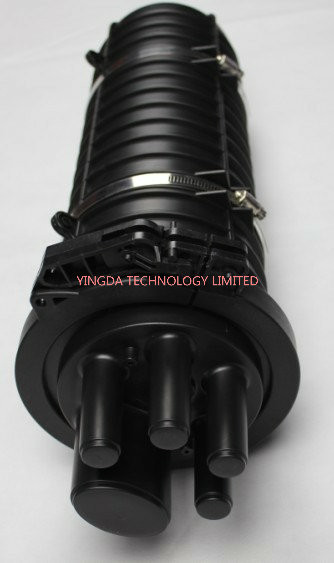

Dome Fiber Optic Splice Closure

China Dome Fiber Optic Splice Closure supplier
Dome Fiber Optic Splice Closure supplier Dome Fiber Optic Splice Closure supplier

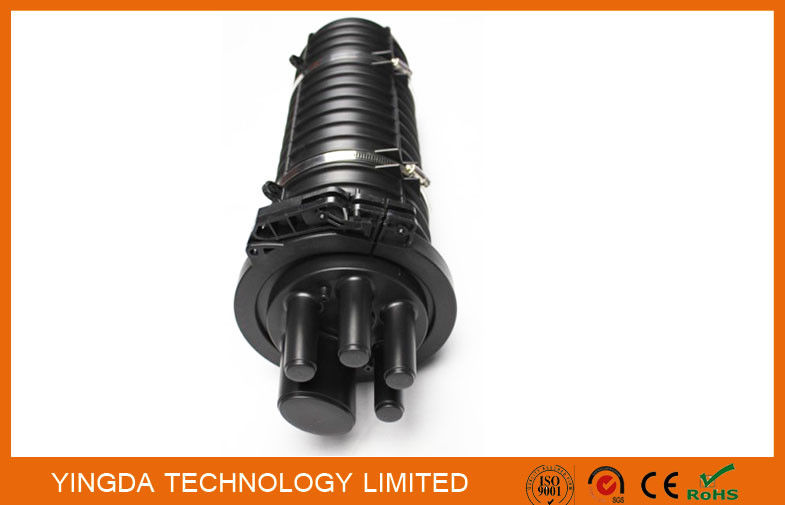

Large Image :  Dome Fiber Optic Splice Closure

Product Details:

Place of Origin: China
Brand Name: YINGDA
Certification: ISO,SGS
Model Number: JB102

Payment & Shipping Terms:

Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: 1pc / box, 6 pcs/ carton box
Delivery Time: 5days after pay
Payment Terms: T/T or western Union
Supply Ability: 50,000pcs per month
Contact Now
Detailed Product Description
Shape: Dome / Vertical Max Capacity: 96 Fibers
Cable Port: 1 Oval + 4 Round Port Cable Diameter: Φ10mm~Φ25 mm
Material: PP Body + ABS Tray Splice Tray Qty: Max. 4 Pcs
Closure Dimension: 540x180 Mm Weight: 3.5 Kgs
Carton Qty: 6 Pcs Carton Size: 60*49.5*61mm
Sealing Method: Heat Srhinkable Tube Waterproof Class: IP68

48 Fibers Dome Fiber Optic Splice Closure,Pole Mount Jounction Box Closure

Equal to TYCO FOSC 400B4





Features:

  • May be used for cut, uncut and taut sheath applications.
  • May be used for all fiber optic cable.
  • Sheath retention & central strength member termination system included.
  • Ribbed closure construction-lightweight plastic offers strength and resistance
  • to chemical and U.V attack
  • Installation and reentry with a minimum of tools
  • All hardware are captivated



Application

  • Underground, Aerial, Vault, Pole Mounting and Wall Mounting



Specification



Model No

Max capacity

(single fusion)

Splice tray

Size

(Hx D)

Cable ports

Max cable

diameter

YDSC-JB102A

96 fiber

(4x24)

Tray JB102A

Capacity:24 fiber

540x180mm

1 oval port +

4round ports

1 oval ports for

 1 loop(uncut) cable

 with max ¢25mm.;

4 round ports,each

port for 1 cable with

max ¢19mm

YDSC-JB102B

Tray JB102B

Capacity:24 fiber


Standard accessories



Dome,Base,clamp,O-ring,metal storage basket,Splice Tray,,Heat shrink protective sleeve,

buffer tube,Cable ties,Grounding wire,Labeling paper,Installation Manual,



1 set of Oval port closing kits:



Including 1 heat shrink fixing tube+ 2pcs of Aluminum paper(10cm x 10 cm)+sand paper

(2.5 x30mm)+ branching clip etc



4 sets of Round port closing kits:



Including 1 heat shrink fixing tube+1 pc of Aluminum paper(10cm x 10 cm)etc



Optional accessories



Hanging hook,Wall mounting(Duct mounting) kits,Pole Mounting kit,Grounding device,Air valve



Order information:



YDSC-JB102X-XX-XX-X

YDSC-JB102(A,B)-Capacity(12,24,36,48,72fiber...)-splice tray(01-=1pc,02=2pcs...)

-accessories(S=standard;O=optional,on customer request)
