Plastic Single - Mode Fiber Optic Attenuator For LAN & WAN / FTTP Network

China Plastic Single - Mode Fiber Optic Attenuator For LAN & WAN / FTTP Network supplier
Plastic Single - Mode Fiber Optic Attenuator For LAN & WAN / FTTP Network supplier Plastic Single - Mode Fiber Optic Attenuator For LAN & WAN / FTTP Network supplier Plastic Single - Mode Fiber Optic Attenuator For LAN & WAN / FTTP Network supplier Plastic Single - Mode Fiber Optic Attenuator For LAN & WAN / FTTP Network supplier

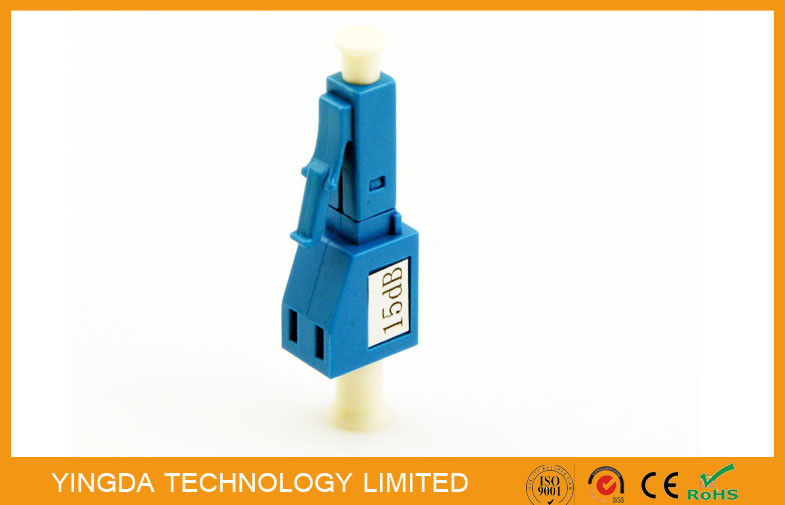

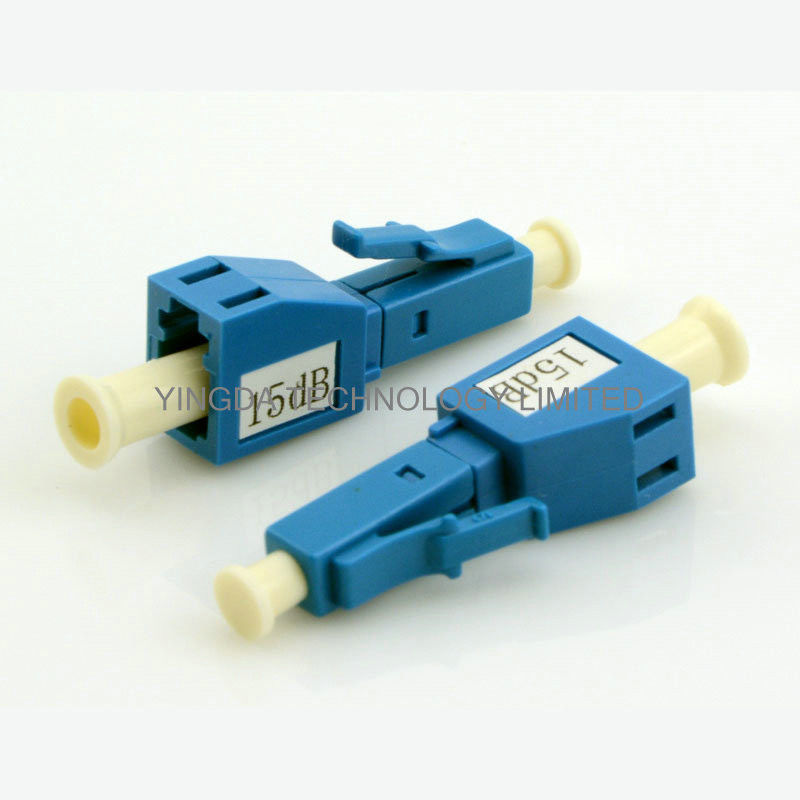

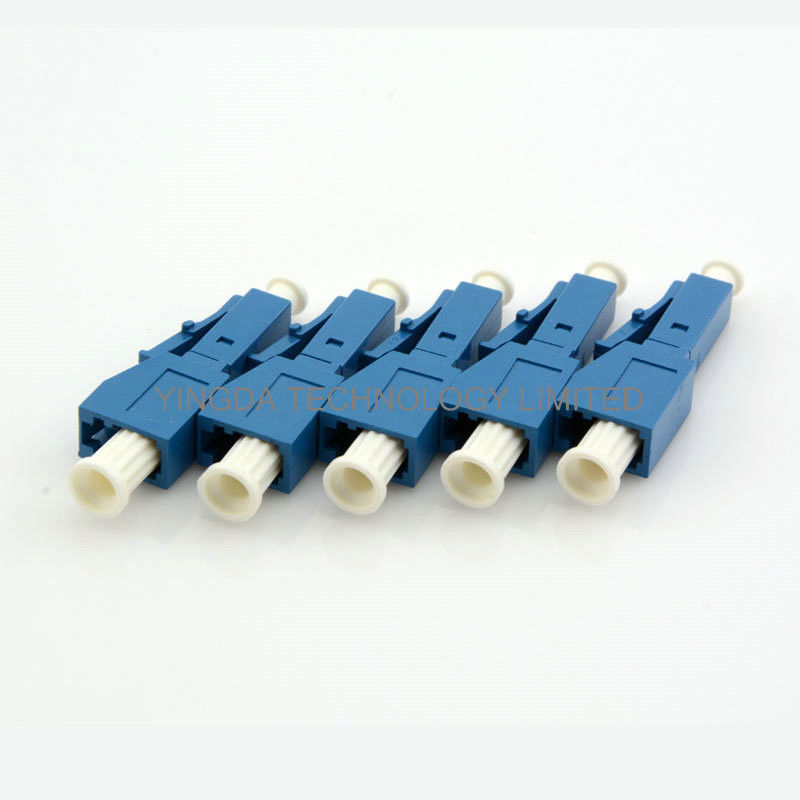

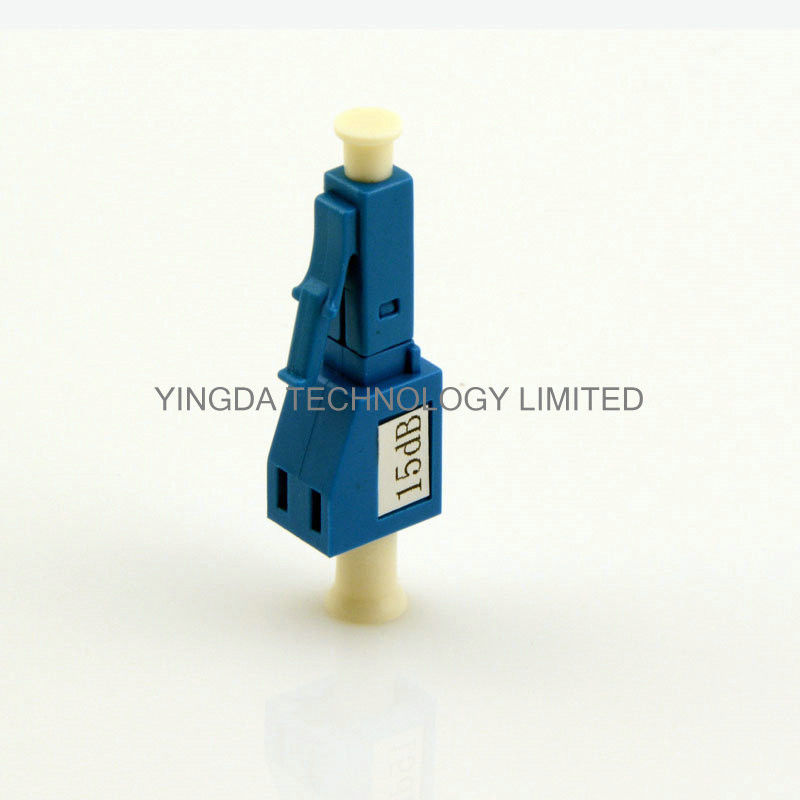

Large Image :  Plastic Single - Mode Fiber Optic Attenuator For LAN & WAN / FTTP Network

Product Details:

Place of Origin: China
Brand Name: YINGDA
Certification: ISO
Model Number: ATTN-LCS-01-B15

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 1 pc / plastoc bag
Delivery Time: 3-5 days
Payment Terms: T/T or western Union
Supply Ability: 50,000pcs per month
Contact Now
Detailed Product Description
Attenuation: 15 DB Test Wavelength: 1310nm, 1550nm
Body Material: Plastic Additional Loss: 0.1dB
Working Temperature:: -40~+85 (℃) Fiber Optic Type: Single-mode, Multimode
Industry Standard: Telcordia TA-NWT-001209 Connector Type: SC/PC
Color: Dust Cap: White, Connector Body: Blue Connector Shape: Plug Type Attenuator

LC Optic Attenuator Fixed Type 10dB, 1-20dB Fiber Attenuator LC/PC For CATV FTTH





Fiber Optic Female to Male Plug-in Type attenuator (F-M attenuator) is a kind of attenaution

adjustable attenuator which one end is connector type, the other end is adapter female type.

According to the ferrule end face it can be divided into PC and APC,attenuation is very selective,

0 ~ 30dB optional, wavelength 1250 to 1650nm.



Male to female type fixed attenuator is mainly applied to the optical link optical power attenuation

in order to get the target required power. It mainly have types: SC, LC, FC, ST, MU.

Now we can offer 1dB,2dB, 3dB, 4dB, 5dB,7dB, 10dB,15dB, 20dB, 25dB,etc.





Features

  1. High precision attenuation value
  2. Low additional loss
  3. High durability
  4. High reliability and stability
  5. Connector type: FC, SC, LC, ST, FC/SC or other type



Application

  • Telecommunication
  • CATV
  • LAN & WAN
  • Network
  • Broadband
  • FTTP network



Technical Parameter



Return Loss

≥45dB(SPC), ≥55dB(UPC), ≥65dB(APC)

Attenuation Tolerance(dB)

1-5dB<±0.5 dB

5-10dB<±10%

11-25dB<±5%

Operating Wavelength(nm)

1310±10nm

1550±10nm

1310 and 1550±10nm

Operating Temperature(℃)

-40℃~+75℃



Reliability test



Test condition

Insert change

Reflection change

Continuous collision (4000times)

< 0.2dB

>35dB

drop test

< 0.2dB

>35dB

bending test

< 0.2dB

>35dB

twist test

< 0.2dB

>35dB

Durability test:

< 0.2dB

>35dB

tensile test:

< 0.2dB

>35dB

Connector fit resistance

200-400gf

 200-400gf

vibration test:

< 0.2dB

>35dB

salt spray test

< 0.2dB

>35dB

shock test

< 0.2dB

>35dB

operating temperature

 -20℃--+70℃

storage temperature

-40℃--+70℃



Order information



Attenuator

Item

Adapter type



FC/APC fixed attenuator 1/2/3/4/5/8/10/15dB

SC/PC fixed attenuator 1/2/3/4/5/10/15dB

SC/APC fixed attenuator 1/2/3/4/5/8/10/15dB

Female to male

type (F-M)

FC/SM/UPC build out (plug-in) attenuator 1/2/3/4/5/10/15dB

SC/SM/UPC buid out (plug-in) attenuator 1/2/3/4/5/10/15dB

FC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB

SC/SM/APCbuild out (plug-in) attenuator 1/2/3/4/5/10/15dB

LC/SM/APC build out (plug-in) attenuator 1/2/3/4/5/10/15dB

Variable(VOA) type

FC/LC/ST/SC connector mechanical 1~30dB Variable attenuator

(MVOA attenuator)
