FC SC ST Metal Adapter Type Fiber Optic Attenuator FC / PC , 15dB Attenuator

China FC SC ST Metal Adapter Type Fiber Optic Attenuator FC / PC , 15dB Attenuator supplier
FC SC ST Metal Adapter Type Fiber Optic Attenuator FC / PC , 15dB Attenuator supplier FC SC ST Metal Adapter Type Fiber Optic Attenuator FC / PC , 15dB Attenuator supplier FC SC ST Metal Adapter Type Fiber Optic Attenuator FC / PC , 15dB Attenuator supplier FC SC ST Metal Adapter Type Fiber Optic Attenuator FC / PC , 15dB Attenuator supplier

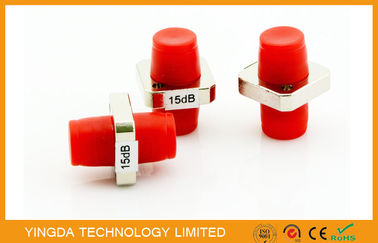

Large Image :  FC SC ST Metal Adapter Type Fiber Optic Attenuator FC / PC , 15dB Attenuator

Product Details:

Place of Origin: China
Brand Name: YINGDA
Certification: ISO
Model Number: ATTN-FCS-01-R15

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: 50 pc / plastic blister box
Delivery Time: 3-5 days
Payment Terms: T/T or western Union
Supply Ability: 50,000pcs per month
Contact Now
Detailed Product Description
Attenuation: 15dB Wavelength Range: 1260-16500nm
Test Wavelength: 1310nm, 1550nm Material: Metal
Additional Loss: 0.1dB Working Temperature:: -40~+85 (℃)
Fiber Optic Type: Single Mode Standard: GR910, IEC

FC Metal Adapter Type Attenuator 15dB, Fiber Optic Attenuator FC/PC 15dB





Fixed adapter type attenuator can use a variety of connectors: FC, SC, ST optional.

Easy installation, simple structure.





Type

attenuation(dB)

Precision

error(dB)

Wavelength

Return

 loss

connector

Adapter/

Coupler type

1—2

≤±0.25dB

1310nm/1550nm

≥35dB

FC;SC/PC

3—15

≤±10 %dB

1310nm/1550nm

≥35dB

FC;SC/APC

15-30

≤±1.5dB

1310nm/1550nm

≥35dB





Features

  1. Conforms to GR910, accord with IEC standard
  2. Various attenuation way, all kinds of connectors available
  3. Low insertion loss and additional loss
  4. High attenuation accuracy
  5. High return loss, compact size, light weight
  6. High stability, high reliability



Application

  1. Optical fiber communication system
  2. Fiber optic data communication network
  3. Optical fiber CATV network
  4.  Other optical testing technology





Specification



Item

Unit

Condition

value

Attenuation

dB

UPC

APC

1-30

1-30

Return loss

dB

UPC

APC

≥50

≥60

wavelength

nm

-

1310&1550, 1240-1600

Attenuation accuracy

-

1-4dB

5-30dB

≤0.5dB

≤10%

Working temperature

-

-40~+75

Storage temperature

-

-40~+85

Polarization dependent

loss (PDL)

dB

-

≤0.2

Relative humidity

%

75℃

95

Anti vibration

dB

10-55Hz, 2hrs

≤0.2

Impact resistance

dB

1.5m, 5times drop

≤0.2



FC SC ST Metal Adapter Type Fiber Optic Attenuator FC / PC , 15dB Attenuator
