Durable OM2 Multimode Optical Fiber Coupler Without Flange SC Adapter Beige

China Durable OM2 Multimode Optical Fiber Coupler Without Flange SC Adapter Beige supplier
Durable OM2 Multimode Optical Fiber Coupler Without Flange SC Adapter Beige supplier Durable OM2 Multimode Optical Fiber Coupler Without Flange SC Adapter Beige supplier Durable OM2 Multimode Optical Fiber Coupler Without Flange SC Adapter Beige supplier Durable OM2 Multimode Optical Fiber Coupler Without Flange SC Adapter Beige supplier Durable OM2 Multimode Optical Fiber Coupler Without Flange SC Adapter Beige supplier

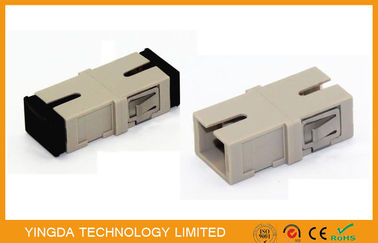

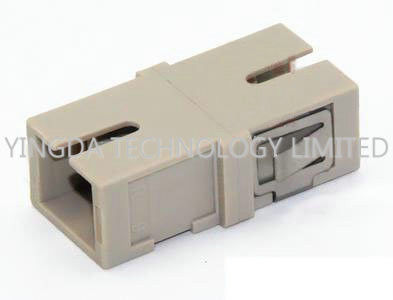

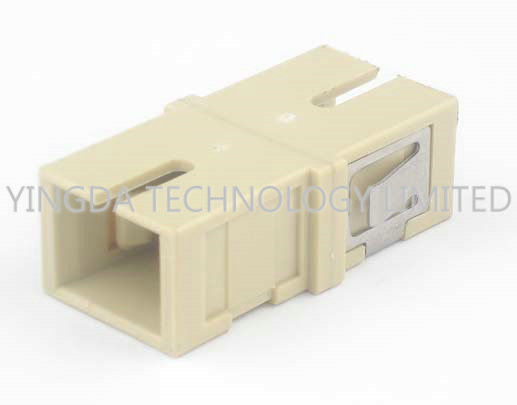

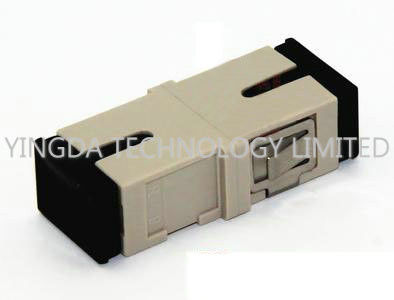

Large Image :  Durable OM2 Multimode Optical Fiber Coupler Without Flange SC Adapter Beige

Product Details:

Place of Origin: China
Brand Name: YINGDA
Certification: ISO,SGS
Model Number: AD-SCM2-01/W

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: 50cs / box
Delivery Time: 5 working days
Payment Terms: T/T or western Union
Supply Ability: 200km/ month
Contact Now
Detailed Product Description
Fiber Count: Simplex Connector Material: Plastic
Adapter Color: Beige Sleeve Material: Ceramic
Fiber Type: Multimode 62.5/125um Polish Mode: PC
Insetion Loss: < 0.2dB Wavelength: 850nm
House Material: ABS Connector: SC

SC OM2 Multimode Optical Fiber Coupler Without Flange SC Adapter Beige





YINGDA produce and offer a full line of factory- and field-installable adapters in a variety of mounting

configurations to ensure compatibility with the housing, panel, outlet or face plate being utilized.

Supporting a variety of connector types, the adapters are ideal for cable assembly house and

manufacturing environments and local area networks (LANs) at the workstation outlet.



Our simplex plastic SC couplers are designed for mounting in standard rectangular cut out style panels.

 This series features either bronze or ceramic alignment sleeves to meet your specific design requirement.

 Additionally, these couplers can be used with PC, APC, UPC style fiber connectors.



Simplex, duplex and quad adapters are available in plastic, without flanges, and in horizontal and

vertical mount styles. All come with a choice of zirconia split sleeves (diagonal or straight split options

available), or with phosphor bronze straight split sleeves. Housing is available in a variety of colors.:

blue, beige, aqua, green,etc.





Features

  1. Insertion loss <0.2dB
  2. 100% test in factory
  3. Durability >1000 times
  4. Use connect PC,UPC,SPC,APC polished SC Fiber Optic Connectors
  5. Plastic ABS/PBT body, light weight, durable
  6. Stainless steel mounting clips allow for easy snap in installation
  7. Ceramic alignment sleeve supports Single mode applications



Specification



Item

Test condition

Conformance

Test result

Vibration

10-55Hz, 1.5mm, 60min

IEC61300-2-1

≤0.2dB

Mating Durability

1000 Mating, clean

every 25 mating.

IEC61300-2-2

≤0.2dB

Impact

1.5m, 8 drops

IEC61300-2-6

≤0.2dB

Strength of Coupling Mechanism

40N, 10Min, L=22-28cm

IEC61300-2-12

≤0.2dB

Temperature Cycling

 40ºC to +75ºC, 40 cycles

IEC61300-2-22

≤0.2dB

Temperature humidty cycling

40ºC, 95%, 96Hr

IEC61300-2-21

≤0.2dB

Operating Temperature

 -40ºC to +85ºC



≤0.2dB

Storage Temperature

 -40ºC to +85ºC



≤0.2dB





Order information



  1. SC Quad Singlemode Adapter w/o flange (blue)
  2. SC/APC Quad Singlemode Adapter w/o flange (green)
  3. SC Quad Multimode 10Gb OM3 Adapter w/o flange (aqua)
  4. SC Quad Multimode Adapter w/o flange (beige)



Durable OM2 Multimode Optical Fiber Coupler Without Flange SC Adapter Beige
