ABS LC UPC SM SX Fiber Optic Coupler LC / PC Singlemode E2000 Adaptor

China ABS LC UPC SM SX Fiber Optic Coupler LC / PC Singlemode E2000 Adaptor supplier
ABS LC UPC SM SX Fiber Optic Coupler LC / PC Singlemode E2000 Adaptor supplier ABS LC UPC SM SX Fiber Optic Coupler LC / PC Singlemode E2000 Adaptor supplier ABS LC UPC SM SX Fiber Optic Coupler LC / PC Singlemode E2000 Adaptor supplier ABS LC UPC SM SX Fiber Optic Coupler LC / PC Singlemode E2000 Adaptor supplier ABS LC UPC SM SX Fiber Optic Coupler LC / PC Singlemode E2000 Adaptor supplier

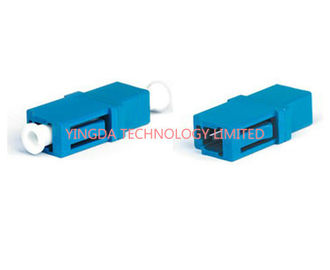

Large Image :  ABS LC UPC SM SX Fiber Optic Coupler LC / PC Singlemode E2000 Adaptor

Product Details:

Place of Origin: China
Brand Name: YINGDA
Certification: ISO,SGS
Model Number: AD-LCS-01

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: 50 pc / box
Delivery Time: 5 working days
Payment Terms: T/T or western Union
Supply Ability: 200km/ month
Contact Now
Detailed Product Description
Fiber Count: Siimplex Connector Material: Plastic
Adapter Color: Blue/ UPC, Beige/PC, Green/APC, Aqua/PC Sleeve Material: Ceramic
Fiber Type: SM, MM,OM3,OM4 Polish Mode: UPC
Working Temperature: -40 ~ +85 °C Wavelength: 1310nm, 1550nm,850nm
House Material: Plastic ABS

ABS LC UPC SM SX Adapter, Fiber Optic Coupler LC / PC Single Mode Simplex Adaptor





Description



Fiber Optic Adapter(coupler), is connector during optical fiber transmission, both ends can be

inserted into the different optical fiber connector such as FC, SC, ST, LC, MTRJ, MPO, E2000

to make them interchange,and widely used in optical optical distribution frame (ODF), optical

Fiber communication equipment, instruments, etc., superior performance, stable and reliable.

Some call fiber optic adapter as optical fiber connectors, in facSt,its two different things.



Main features



The optical fiber is linked by internal opening sleeve of adapter to ensure the highest connection

performance. In order to fix them on various panels, also designed a variety of precise fixed adapters.



Hybrid adapter can connect different types of connectors on both ends,and provides APC end face

connection. Duplex or multiple adapter can improve the density of installation, save a space.



Product category

According to different optical fiber connector, fiber optic adapter can provide corresponding

connecting parts.

Suitable connector are FC, SC, ST, LC, MTRJ, E2000, etc.

Suitable connector end face are PC, UPC, APC, etc.



Advantage:

  1. Low insertion loss <0.2dB
  2. High return loss
  3. Small size, high density
  4. High precision mechanism
  5. Simple installation and operation



Application

  • Optical fiber communication room / network cabinet
  • Fiber Optic Cross Cabinet
  • CATV
  • EPON
  •  FTTP



Specification



Item

Single mode

multimode

Polish

UPC

APC

UPC

PC

Insertion loss

≤0.2dB

≤0.2dB

≤0.3dB

0.3dB

Return loss

≥50dB

≥60dB

≥50dB

≥35dB

Max. attenuation

0.4dB@1310nm

0.3dB@1550nm

0.4dB@1310nm

0.3dB@1550nm

3.0dB@850nm

1.2dB@1300nm

3.0dB@850nm

1.2dB@1300nm

attenuation

Single mode:1310nm≤0.35dB/km;1550nm≤0.25dB/km

    multimode:850nm≤3.0dB/km;1300nm≤1.0dB/km

durability

≥1000 / Matings

Working temperature

-30℃~ +70℃

Note: the parameters in the table for reference purposes only, if the numerical change without notice.



Order information



1.  End face polish: PC, UPC. APC

2. Cable type; single mode (SM= 9/125) , multimode (MM= 50/125 or  62.5/125)OM3 ;OM4

3. Cable capacity: Simplex or Duplex

4. Cable jacket: PVC,LSZH ,PU...

5. Cable diameter: 0.9mm 1.6mm 2.0mm  3.0mm 4.0mm......

6. Cable length: L=1M,2M,3M `````````(M=Meter) or customized

7. Cable color: customized

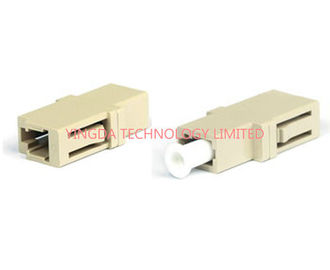

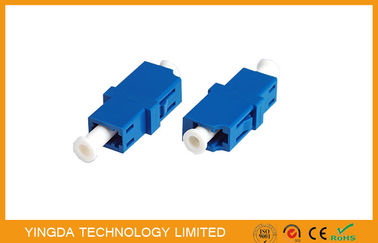

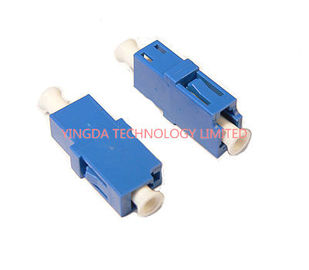

More product show:
