PBT ABS CATV Fiber Optic Adapter FC Small D Hole SM SX / Fiber Optic Coupler

China PBT ABS CATV Fiber Optic Adapter FC Small D Hole SM SX / Fiber Optic Coupler supplier
PBT ABS CATV Fiber Optic Adapter FC Small D Hole SM SX / Fiber Optic Coupler supplier PBT ABS CATV Fiber Optic Adapter FC Small D Hole SM SX / Fiber Optic Coupler supplier PBT ABS CATV Fiber Optic Adapter FC Small D Hole SM SX / Fiber Optic Coupler supplier PBT ABS CATV Fiber Optic Adapter FC Small D Hole SM SX / Fiber Optic Coupler supplier

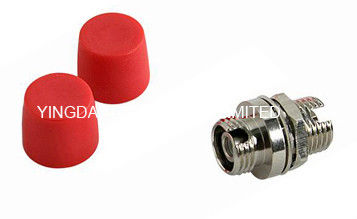

Large Image :  PBT ABS CATV Fiber Optic Adapter FC Small D Hole SM SX / Fiber Optic Coupler

Product Details:

Place of Origin: China
Brand Name: YINGDA
Certification: ISO,SGS
Model Number: AD-FC-SM01-R

Payment & Shipping Terms:

Minimum Order Quantity: 10km
Price: Negotiable
Packaging Details: 50 pc / box
Delivery Time: 5 working days
Payment Terms: T/T or western Union
Supply Ability: 200km/ month
Contact Now
Detailed Product Description
Fiber Count: 1 Fibers Connector Material: Metal + Plastic
Dustcap Color: Red Sleeve Material: Ceramic
Outer Sheath: LSZH Fiber Type: Single Mode SM
Polish Mode: UPC / PC Working Temperature: -40 ~ +80 °C

CATV Fiber Optic Adapter FC Small D Hole, FC Adapter D Hold SM SX





Fiber Optic Adapter (also called coupler), is a kind of connector in optical fiber transmission,

whose both ends can be inserted the different optical fiber connector such as FC, SC, ST, LC,

MTRJ, MPO, E2000 to make them interchange, and widely used in optical distribution frame(ODF),

optical Fiber communication equipment, instruments, etc.It is superior performance, stable and

reliable. Some call fiber optic adapter as optical fiber connectors, in fact, its two different items.



Features

  • Low insertion loss< 0.2 dB
  • Good interchangeability
  • Good repeatability
  • 100% test in factory
  • Blister box or plastic bag pack
  • PBT or ABS material



Application

  1. optical fiber communication system
  2. cable TV network
  3. local area network (LAN), optical network domain
  4. optical fiber to the home (FTTP)
  5. video transmission
  6. test instruments



Specification



Item

Value

Wavelength

1200-1600nm

Polish method

UPC,PC,APC

IL

≤0.2dB

Max. IL

≤0.3dB

Repeatability

≤0.1dB

Interchangeability

≤0.2dB

Sleeve material

Cermic or metal

Working/Storage temperature

-40~+85℃

Matings time

>1000

Standard

Bellcore TA-NWT-001221/001209



Order information



Endface

Fiber mode

Fiber core

Sleeve

PC

Multi mode

simplex

Cermic

UPC

Single mode

duplex

Phosphor bronze





All FC Fiber Adapter Models:

PBT ABS CATV Fiber Optic Adapter FC Small D Hole SM SX / Fiber Optic Coupler

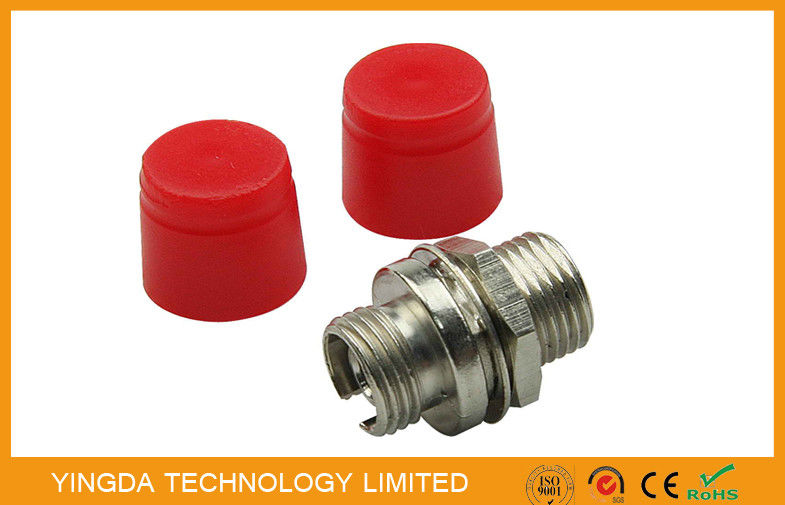

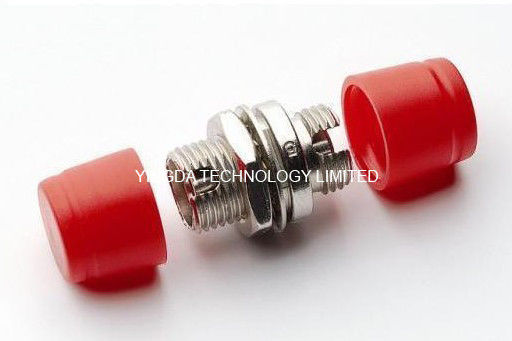

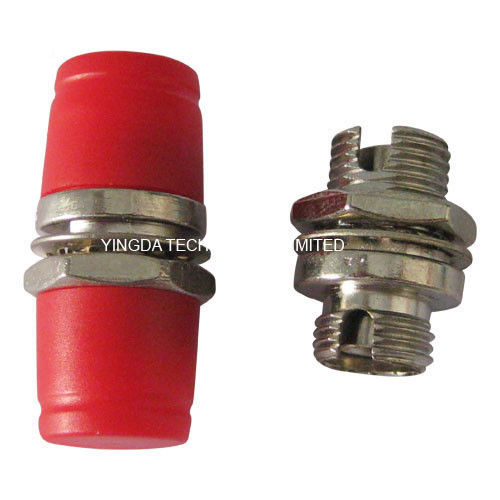

FC Adapter Small D hole More Details:



PBT ABS CATV Fiber Optic Adapter FC Small D Hole SM SX / Fiber Optic CouplerPBT ABS CATV Fiber Optic Adapter FC Small D Hole SM SX / Fiber Optic CouplerPBT ABS CATV Fiber Optic Adapter FC Small D Hole SM SX / Fiber Optic CouplerPBT ABS CATV Fiber Optic Adapter FC Small D Hole SM SX / Fiber Optic Coupler
