Outdoor FTTA Base Station CPRI Cable Round 2 Cores 7.0mm G657A2 LSZH BBU RRU

  • Outdoor FTTA Base Station CPRI Cable Round 2 Cores 7.0mm G657A2 LSZH BBU RRU
  • Outdoor FTTA Base Station CPRI Cable Round 2 Cores 7.0mm G657A2 LSZH BBU RRU
  • Outdoor FTTA Base Station CPRI Cable Round 2 Cores 7.0mm G657A2 LSZH BBU RRU
Place of Origin china
Brand Name YINGDA
Certification ISO
Model Number GYFJH
Minimum Order Quantity 10 km
Price Negotiable
Packaging Details 2km / reel or cusotmized
Delivery Time 5 working days
Payment Terms T/T or western Union
Supply Ability 500km / month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Fiber Count 2 Cores Strength Member LSZH 2mm Sheath With Aramid Yarn
Name GYFJH Outdoor Cable Cable Color Black
Cable Shape Round Cable Fiber Type G657A2
Package Wooden Drum Outer Jacket LSZH
High Light

ftth fiber optic cable

,

ftth drop cable
Leave a Message
Product Description

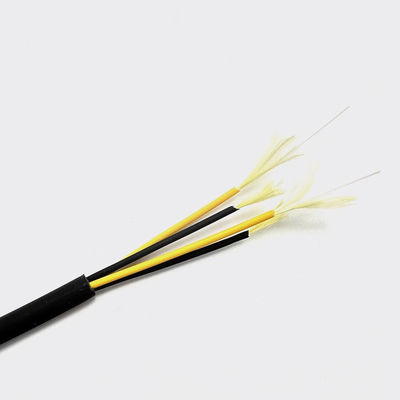

Outdoor FTTA Base Station CPRI Cable Round 2 Cores 7.0mm G657A2 LSZH BBU RRU

FTTA unarmored base station optical fiber cable is ɸ7.0mm LSZH black optical cable GJFJV. It is high strength outdoor cable, can be used for duct, pipeline and many harsh environments. The sub-unit fiber is ɸ2.0mm indoor cable with LSZH sheath, and there are 2pcs aramid yarn stuffing cable ɸ2.0mm for cable strength member. Black color is suitable for outdoor use, if customer request, can add stainless steel tape or water blocking layer for better function.

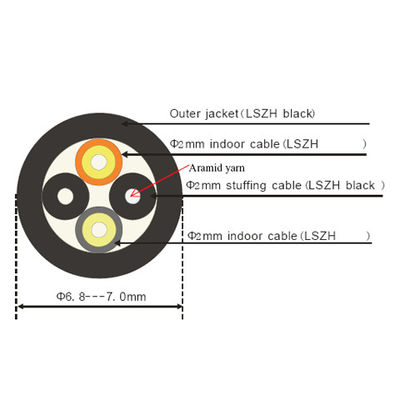

GYFJH Cable Structure:
Outdoor FTTA Base Station CPRI Cable Round 2 Cores 7.0mm G657A2 LSZH BBU RRU 0
FTTA Cable Application
Mainly used in wireless base station horizontal and vertical cabling, such as 3G 4G base station, Aerospace & Defence, Equipment diagnosis, FO sensor, FTTA ,FTTP, FTTX, WIMAX, BBU, RRU, RRH, LTE.

7.0mm CPRI Cable Features

  • Good mechanical and environmental characteristics;
  • Flame retardant characteristics meet the requirements of relevant standards;
  • The mechanical characteristics of jacket meet the requirements of relevant standards;
  • Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
  • Meet various requirements of market and clients


Base Station Cable Technical Parameter

Cable TypeGYFJH
Fiber count2cores
Fiber diameterOD:245±10um
Tight bufferOD:0.87±0.05mm
Inner sheathLSZH
Inner sheath diameter2.0mm
Inner sheath colorBlue, orange
Cable outer sheath7.0mm
Cable Weight42.3kg/km
Tensile strengthLong term200N
Short term400N
Crush resistanceLong term1100N/100mm
Short term2200N/100mm
Min. Bend RadiusDynamic20D
Static10D
Range of Temperature-30-+70℃

Note:
1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;
3. D is outer diameter of the round cable;



Single Mode Fiber Parameters

ItemUnitValue
AttenuationdB/km

1310nm≤0.4
1550nm≤0.3

DispersionPs/nm.km

1285~1330nm≤3.5
1550nm≤18.0

Zero dispersion wavelengthNm1300~1324
Zero dispersion slopePs/nm.km≤0.095
Fiber cutoff wavelengthNm≤1260
Mode field diameterUm9.2±0.5
Mode field concentricityUm<=0.8
Cladding diameterum125±1.0
Cladding non-circularity%≤1.0
Coating/cladding concentricity errorUm≤12.5
Coating diameterum245±10
bending, dependence induced attenuation1550nm, 1turns,32mm diameter 100rums,60mm diameter≤0.5 db
Proof testkpsi≥100


Multi Mode Fiber Parameters

ItemUnitValue
AttenuationdB/km

850 nm≤3.5
1300 nm≤1.5

BandwidthMHz·㎞50/125um62.5/125 um
850 nm≥200850 nm≥160
1300 nm≥2001300 nm≥200
Cladding diameterum125±1.0
Cladding non-circularity%≤1.0
Coating/cladding concentricity errorUm≤12.5
Coating diameterum245±10
bending, dependence induced attenuation850nm,1300nm 100turns,75mm diameter≤0.5 at 850 nm1300 nm
Proof testkpsi≥100


Yingda can add all kinds of connectors  SC FC LC ST on this outdoor cables for on site construction, and with telecom standard quality, and 100% test before delivery with best package.
Outdoor FTTA Base Station CPRI Cable Round 2 Cores 7.0mm G657A2 LSZH BBU RRU 1Outdoor FTTA Base Station CPRI Cable Round 2 Cores 7.0mm G657A2 LSZH BBU RRU 2Outdoor FTTA Base Station CPRI Cable Round 2 Cores 7.0mm G657A2 LSZH BBU RRU 3
Connector Specification

Connector typeDLC UPC APC
Insertion loss≤0.3db
Return Loss≥35db
Fiber modeSingle mode or Multi-mode
Operating wavelength850nm, 1300nm
Test wavelength850nm, 1300nm
Repeatability≤0.1
Interchangeability≤0.2dB
Durability≤0.2dB
Fiber Length1m, 2m….. any length optional.
Length and tolerance10cm
Operating Temperature-40C ~ +85C
Storage Temperature-40C ~ +85C
