SC FC LC Field Installable ST Fiber Optic Connector SC / APC Waterproof

China SC FC LC Field Installable ST Fiber Optic Connector SC / APC Waterproof supplier
SC FC LC Field Installable ST Fiber Optic Connector SC / APC Waterproof supplier SC FC LC Field Installable ST Fiber Optic Connector SC / APC Waterproof supplier SC FC LC Field Installable ST Fiber Optic Connector SC / APC Waterproof supplier

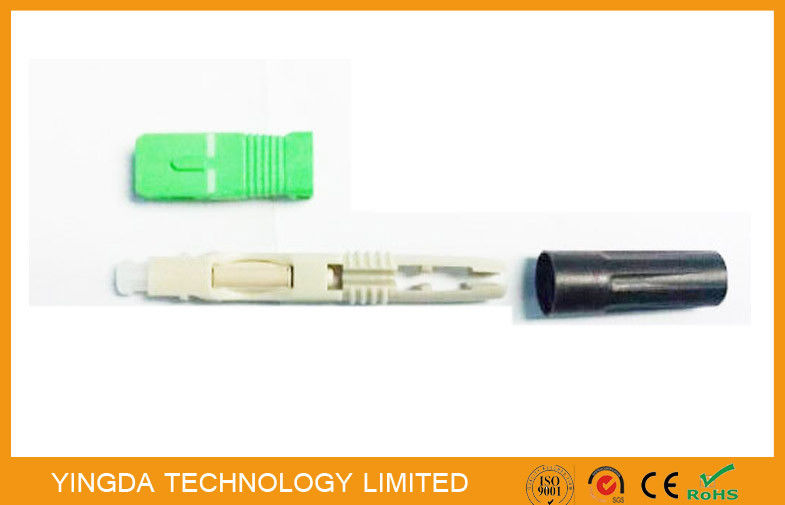

Large Image :  SC FC LC Field Installable ST Fiber Optic Connector SC / APC Waterproof

Product Details:

Place of Origin: China
Brand Name: YINGDA
Certification: ISO
Model Number: YD-FIC-SCA-A

Payment & Shipping Terms:

Minimum Order Quantity: 500PCS
Price: Negotiable
Packaging Details: 10pcs / blister box,1200pcs / carton box
Delivery Time: 3-5 working days after get payment
Payment Terms: T/T or western Union
Supply Ability: 10,000pcs per day
Contact Now
Detailed Product Description

FTTH SC FC LC ST Fast Assembly Mechanical Connector, Field Installable Connector SC / APC





Sell point:



1. pre-polished and curing ferrule

2. pre-embedded fiber optic fiber

3. Length: 55mm

4. Cable stripper length:

SC FC LC Field Installable ST Fiber Optic Connector SC / APC Waterproof





Description



Quick connector is a kind of connector, it is used in field wiring operation and FTTH project

where need fast and stable connection. Because it has embedded fiber and pre-polished

and heat oven ferrule, so no need additional glue curing or grinding, thus offer quicker help

to installation, maintenance,repair and fiber to the home for engineers. The pre-embedded

fiber and pre-polished and cured ferrule ensures the ferrule end face good quality, and

effectively protect the user equipment interface from damage, reduce the connection

attenuation loss.



Features



1. Can be used as a connector and attenuator

2. Can made any length of fiber optic patch cord on-site

3. On-site installation, simple and quick operation, only 2 minutes

4. With pre-embedded optical fiber and the end face is pre-polished and heat oven, without any adhesive and polishing process

5. Do not need hot melt, save power supply

6. High performance, good reliability

7. Mechanical and environmental performance conforms to GR-326-CORE standard.





Application

  • FTTH network
  • CATV network
  • Fiber Optic Telecommunication
  • Fiber Data Transmission
  • Fiber Optic Test
  • Fiber Optic Distribution Frame use

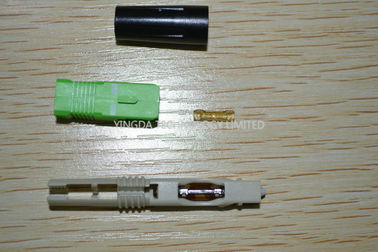

Connector Structure



SC FC LC Field Installable ST Fiber Optic Connector SC / APC Waterproof



 Specification



Applicable for

3.1×2.0mm Drop cable, 3.0/2.0/0.9 cable

Optical fiber diameter

125um (G652D,G657A1,G657A2)

Tight butter diameter

250um

Fiber mode

Single mode

Operation time

About 60s (no fiber cut)

Insertion loss

≤0.3dB(1310nm &1550nm)

Return loss

≤-40dB

Fastening strength of naked fiber

>5N

Fastening strength of naked fiber holder

>10N

Tensile strength

>50N

Using temperature

-45~+80℃

On-line tensile strength(20N)

△IL≤0.2dB △RL≤5dB

Mechanical durability(500times)

△IL≤0.2dB △RL≤5dB

Drop-off test(drop-off height 4m,once per direction,totally 3times)

△IL≤0.2dB △RL≤5dB





Order information



  1. Connector: SC/UPC, SC/APC, FC/UPC,FC/APC,ST, LC/UPC,LC/APC
  2. Cable type: drop cable , indoor cable 0.9mm, 2.0mm
  3. Connector color: Blue,Green, Black
  4. Fiber type: G652D, G657A1, G657A2

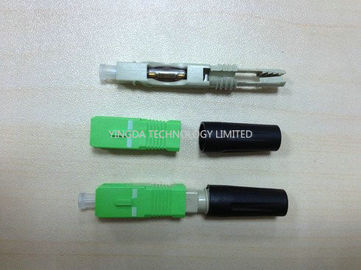

Product Length:



   Total 55mm (boot- top of the dust cap)

    boot to top of the ferrule: 53mm



SC FC LC Field Installable ST Fiber Optic Connector SC / APC Waterproof





Two package metods:



SC FC LC Field Installable ST Fiber Optic Connector SC / APC WaterproofSC FC LC Field Installable ST Fiber Optic Connector SC / APC Waterproof
