ST Pigtail Singlemode, Fiber Optic Pigtail ST SM 9/125 3M Loose Easy Peel Cable Jacket

China ST Pigtail Singlemode, Fiber Optic Pigtail ST SM 9/125 3M Loose Easy Peel Cable Jacket supplier
ST Pigtail Singlemode, Fiber Optic Pigtail ST SM 9/125 3M Loose Easy Peel Cable Jacket supplier ST Pigtail Singlemode, Fiber Optic Pigtail ST SM 9/125 3M Loose Easy Peel Cable Jacket supplier ST Pigtail Singlemode, Fiber Optic Pigtail ST SM 9/125 3M Loose Easy Peel Cable Jacket supplier

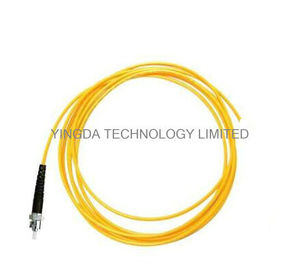

Large Image :  ST Pigtail Singlemode, Fiber Optic Pigtail ST SM 9/125 3M Loose Easy Peel Cable Jacket

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: YINGDA
Certification: ISO SGS ROHS
Model Number: FPG-ST-OS2-09-06

Payment & Shipping Terms:

Minimum Order Quantity: 500 pcs
Price: negotiable
Packaging Details: 1 pc/ bag, 1500pcs / carton box
Delivery Time: 7days after payment
Payment Terms: Western Union, T/T
Supply Ability: 200,000 pcs per month
Contact Now
Detailed Product Description
Connector: ST Fiber Count: Simplex 1 Core
Insertion Loss: <0.3dB Fiber Type: Corning Fiber SMF-28e
Package: Plastic Bag With Label Cable Diameter: 0.9mm
Jacket: LSZH, PVC Connector Color: Yellow, Orange, White,aqua
Temperature: -40~+80°C Customer Logo: Yes

ST Pigtail Singlemode, Fiber Optic Pigtail ST SM 9/125 3M Loose Easy Peel Cable Jacket





Fiber Optic pigtail has connector at one end, the other end is fiber optic cable which be cut off.

Then it connect by splice with other cable core. It is widely used in fiber optic terminal box, ODF

rack , cabinet to connect with fiber optic media converter/transceivers(also coupler,patch cord,etc.)



ST fiber Pigtail is still the most popular Pigtail, this fiber Pigtail has a bayonet mount and a long

cylindrical 2.5 mm ceramic (usually) or polymer ferrule to hold the fiber. Clearly speaking, The ST

fiber Pigtail (Straight Tip) is a fiber Pigtail which uses a plug and socket which is locked in place

with a half-twist bayonet lock. The ST Pigtail was the first defactor standard for fiber optic cabling

and ST fiber Pigtail is one of the leading fiber Pigtails.





Feature

  1. Mostly used in frame connection, simple, convenient and economical
  2. Easy to install, small size, large capacity.
  3. Jumper types: 2.0mm, 1.6mm,1.8mm, 2.4mm, 0.9mm,3.0mm
  4. Indicators PC : Insertion Loss ≤ 0.2dB ; reflection attenuation ≥ 50dB;
  5. APC insertion loss ≤ 0.2dB ; Return Loss ≥ 60dB
  6. Fiber: 4 core 6 core 8 core, 10 core, 12 core.
  7. Fan out fiber have a special casing protection from twisting off or injury,
  8. and good bending properties.
  9. With FC / PC, FC / APC, SC / PC, SC / APC, ST / PC connectors



Specification (for single mode)



Parameter

PC

UPC

APC

Insertion loss(dB)

≤0.30

Repeatability(dB)

≤0.10

Interchangeability(dB)

≤0.10

Return loss(dB)

≥50

≥55

≥60

Mating times

≥500

Operating temperature(°C)

-40- +75

Fiber

G652.G655

Fiber length (M)

3.5.7.10 (in terms of customer demands)





Ordering Information:


ST/ PC SM 9/125 SIMPLEX 0.9mm–2M PVC

①   ②       ③              ④         ⑤       ⑥  ⑦



① Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
② Ferrule End-face: PC, UPC, APC
③ Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
④ Cable Quantity: simplex or duplex
⑤ Cable Diameter: Ф3.0mm, Ф2.0mm, Ф0.9mm,Ф1.6mm, Ф1.8mm,Ф2.4mm
⑥ Cable Length: 1, 2, 3 meter or customized
⑦ Cable type: PVC, LSZH

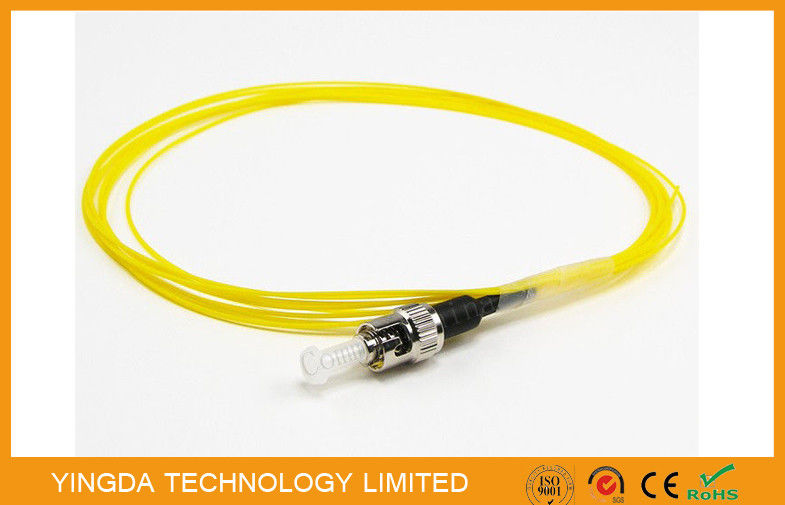

ST Pigtail Singlemode, Fiber Optic Pigtail ST SM 9/125 3M Loose Easy Peel Cable JacketST Pigtail Singlemode, Fiber Optic Pigtail ST SM 9/125 3M Loose Easy Peel Cable JacketST Pigtail Singlemode, Fiber Optic Pigtail ST SM 9/125 3M Loose Easy Peel Cable Jacket
