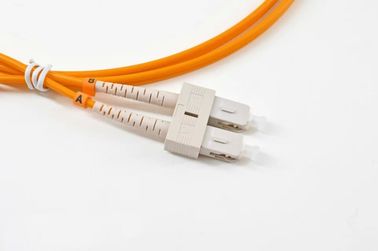

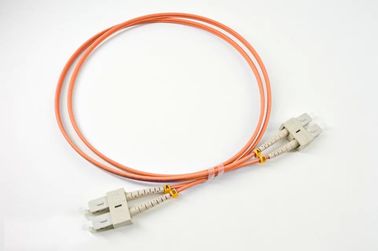

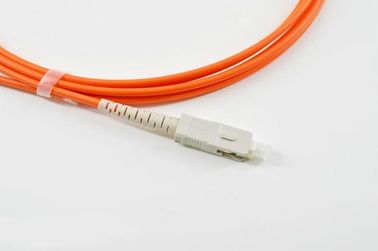

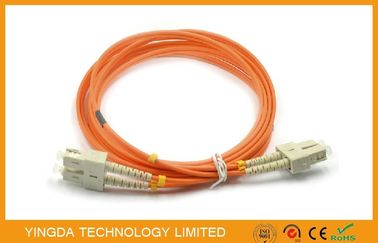

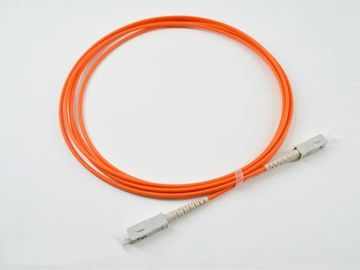

SC -SC Multimode Fiber Optic Patch Cord 50 (125)um Duplex 2.0mm With Beige Clip

China SC -SC Multimode Fiber Optic Patch Cord  50 (125)um Duplex 2.0mm With Beige Clip supplier
SC -SC Multimode Fiber Optic Patch Cord  50 (125)um Duplex 2.0mm With Beige Clip supplier SC -SC Multimode Fiber Optic Patch Cord  50 (125)um Duplex 2.0mm With Beige Clip supplier SC -SC Multimode Fiber Optic Patch Cord  50 (125)um Duplex 2.0mm With Beige Clip supplier SC -SC Multimode Fiber Optic Patch Cord  50 (125)um Duplex 2.0mm With Beige Clip supplier SC -SC Multimode Fiber Optic Patch Cord  50 (125)um Duplex 2.0mm With Beige Clip supplier

Large Image :  SC -SC Multimode Fiber Optic Patch Cord 50 (125)um Duplex 2.0mm With Beige Clip

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: YINGDA
Certification: ISO SGS ROHS
Model Number: FPC-SS-SMSX-01-02

Payment & Shipping Terms:

Minimum Order Quantity: 500 pcs
Price: negotiable
Packaging Details: 1 pc/ box, 280pcs / carton box
Delivery Time: 7days after payment
Payment Terms: Western Union, T/T
Supply Ability: 60,000 pcs per month
Contact Now
Detailed Product Description
Connector: SC/PC SC/UPC SC/APC Fiber Count: Simplex ,duplex
Insertion Loss: <0.2dB Cable Length: On Customer Request
Cable Diameter: 0.9mm,2.0mm,3.0mm,1.6mm,1.8mm,2.4mm Fiber Type: SM OM1 OM2 OM3 OM4
Package: 1pc / Plastic Bag Cable Color: Yellow,orange,beige,blue,purple,aqua
Return Loss: >55dBU PC, UPC>35dB, APC>60dB

Fiber Optic Patch Cord SC -SC Multimode 50(125)um Duplex 2.0mm With Beige Clip





Sell point:

  1. Insertion loss <0.3dB
  2. Return loss ≥ 35dB
  3. Durability: 500 matings
  4. Operating temperature: -40°C~+75°C
  5. Package: 1pc/ plastic bag
  6. OEM label / brand
  7. Lead time: about 3-5days
  8. 100% test

Duplex Jumper / Patch Cord Structure:SC -SC Multimode Fiber Optic Patch Cord  50 (125)um Duplex 2.0mm With Beige Clip



Fiber optic patch cord also called jumper, it is the connection cable between the equipment and fiber optic cabling wiring. It has a protective layer jacket, generally used in optical transceivers and terminal boxes.



Fiber optic patch cord= connectors+cable+connector;

Fiber optic pigtail= connector +cable.



Optical fiber jumper (Optical Fiber Patch Cord/Cable) and similar to coaxial cable, but no have net shielding layer. The center is the light transmission glass core(ferrule). In multimode fibers, the diameter of the core is 50 mu m~65 mu m, roughly equal to the human hair thickness. While the single mode fiber core diameter is 8u m~10u m. The core is surrounded by a layer of glass coating whose refractive index is lower than the core, in order to make the optical fiber holding in the core. Outside is a thin layer of plastic jacket to protect the coating.



Multimode fiber (Multi-mode Fiber): the fiber patch cable is orange, connector and housing beige; short distance transmission.



SC -SC Multimode Fiber Optic Patch Cord  50 (125)um Duplex 2.0mm With Beige ClipSC -SC Multimode Fiber Optic Patch Cord  50 (125)um Duplex 2.0mm With Beige Clip

50/1265um or 62.5/235um Patch cord beige connector ;OM3 10Gigabit Aqua Fiber Jumper beige connector



SC -SC Multimode Fiber Optic Patch Cord  50 (125)um Duplex 2.0mm With Beige ClipSC -SC Multimode Fiber Optic Patch Cord  50 (125)um Duplex 2.0mm With Beige Clip

OM4 Fiber Optic Duplex Patchcord Purple cable; OM4 Fiber Optic Duplex Patch cord purple connector



SC -SC Multimode Fiber Optic Patch Cord  50 (125)um Duplex 2.0mm With Beige ClipSC -SC Multimode Fiber Optic Patch Cord  50 (125)um Duplex 2.0mm With Beige Clip

         Duplex patch leads without clip                              Duplex patch leads with clip



Features

  • Low insertion loss
  • Repeat ability
  • High return loss
  • Mutual Insert performance
  • Good temperature stability
  • Strong tensile property
  • Cheap multimode fiber price,short distance transmission
  • Wide transmission bandwidth



Application

  1. Fiber communication system
  2. Fiber access network
  3. Data transmission
  4. CATV
  5. LAN
  6. Test equipment
  7. Optical fiber sensor



Specification



Item

Single mode(nomomodo)

Multimode(Multimodo)

Wavelength

1310&1550nm

850&1300nm

Fiber type

9/125um

62.5/125um,50/125um,50/125um

 OM3,50/125um OM4

Connector type

SC ST FC LC MU MTRJ E2000 DIN D4 ESCON

Insertion loss on average

≤0.3dB

≤0.3dB

Max. insertion loss

≤0.5dB

≤0.5dB

Return loss

UPC≥55dB;APC≥65dB

≥20dB

Operating temperature

-40~+75℃

Storage temperature

-40~+85℃



SC -SC Multimode Fiber Optic Patch Cord  50 (125)um Duplex 2.0mm With Beige Clip
