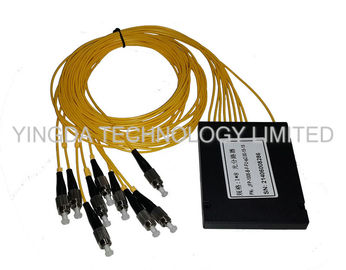

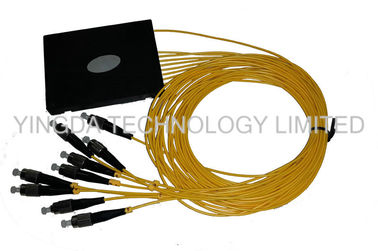

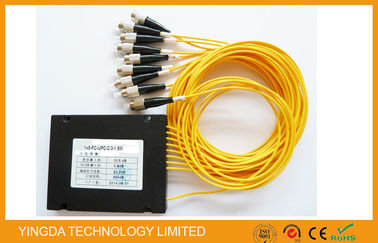

1X8 Fiber Optic PLC Splitter Module Abs Plastic For Fttx Network / Optical Signal Distribution

China 1X8 Fiber Optic PLC Splitter Module Abs Plastic For Fttx Network / Optical Signal Distribution supplier
1X8 Fiber Optic PLC Splitter Module Abs Plastic For Fttx Network / Optical Signal Distribution supplier 1X8 Fiber Optic PLC Splitter Module Abs Plastic For Fttx Network / Optical Signal Distribution supplier 1X8 Fiber Optic PLC Splitter Module Abs Plastic For Fttx Network / Optical Signal Distribution supplier 1X8 Fiber Optic PLC Splitter Module Abs Plastic For Fttx Network / Optical Signal Distribution supplier

Large Image :  1X8 Fiber Optic PLC Splitter Module Abs Plastic For Fttx Network / Optical Signal Distribution

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: YINGDA
Certification: ISO SGS ROHS
Model Number: 1X8 splitter module

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: negotiable
Packaging Details: 1pc/ box,5pcs/carton box
Delivery Time: 5-8days after payment
Supply Ability: 10,000 pcs per month
Contact Now
Detailed Product Description
Split Ratio: 1X8 Connector: FC/UPC
Fiber Type: Single Mode G657A1 Insertion Loss: 10.2dB
Uniformity (Max.): 0.8dB Wavelength: 1260 - 1650 Nm
PDL(Max.): 0.2dB Module Size: 100*80*10mm

1:8 Fiber Optic Plc Splitter Module, Abs Plastic Splitter Module Type For Fttx Network





Features

  1. Low Insertion loss
  2. Low PDL
  3. Compact Design
  4. Good channel-to-channel uniformity
  5. High Reliability and Stability



Application

  • FTTX Systems
  • PON Networks
  • CATV Links
  • Optical Signal Distribution



Specification



Split ratio

1x2

1x4

1x8

1x16

1x32

1x64

1x128

Operating Wavelength

(nm)

1260-1620nm

Fiber Type

G657A1 or customer specified

Insertion Loss (dB)

P Grade

3.8

7.1

10.2

13.5

16.5

20.5

23.8

Insertion Loss (dB)

S Grade

4

7.3

10.5

13.7

16.9

21

24.2

Loss Uniformity(dB)

0.4

0.6

0.8

1.2

1.5

2

2.5

Polarization Dependent

Loss(dB)

0.2

0.2

0.2

0.25

0.3

0.35

0.4

Return Loss (dB)

55

Directivity (dB)

55

Wavelength Dependent

0.3

0.3

0.3

0.5

0.5

0.5

0.5

 Loss(dB)















Temperature Stability

(-40- +85℃)(dB)

0.4

0.4

0.4

0.5

0.5

0.5

0.5

Operating Temperature

-40- +85℃

Storage Temperature

-40- +85℃



 Pack information:

  1. ABS plastic box size:100*80*10mm
  2. 1PC / carton box
  3. 100% test report



Split ratio

1x2

1x4

1x8

1x16

1x32

1x64

1x128

Plastic box

Module

 Dimension(mm)

100*80*10

100*80*10

100*80*10

120*80*18

140*115*18

140*115*18

140*115*18
