IP65 LC APC Duplex Adapter 2x32 Fiber Optic Splitter Box
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | ABS+PC | Color | Gray |
|---|---|---|---|
| Dimension | 340*220*95mm | Adapter | 24pcs LC Duplex Adapter SC Footprint With Flange |
| Splice Tray | 4pcs X 24 F | Max. Capacity | 96 Cores |
| Cable Output | 24 Ports For Drop Cable | Cable Input | 1 Uncut Port, 2 Cable Glands 12.5mm |
| Installation | Wall Mount Or Pole Mount | IP Grade | IP65 |
| Fiber Type | G657A1 | Connector Type | LC/APC |
| High Light | 2x32 Fiber Optic Splitter Box,G657A1 Fiber Optic Splitter Box,FDB0224M |
||
Product Description

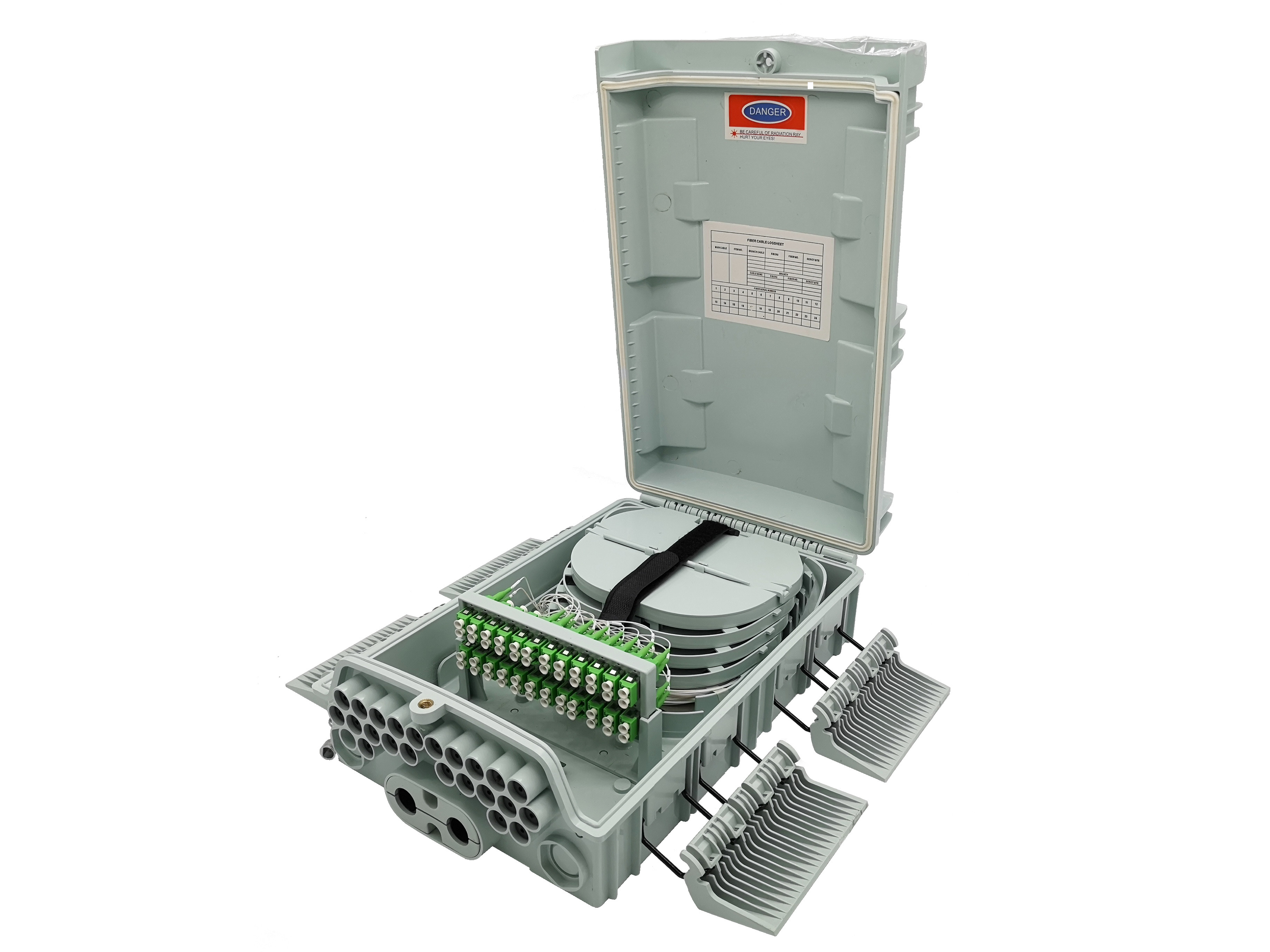

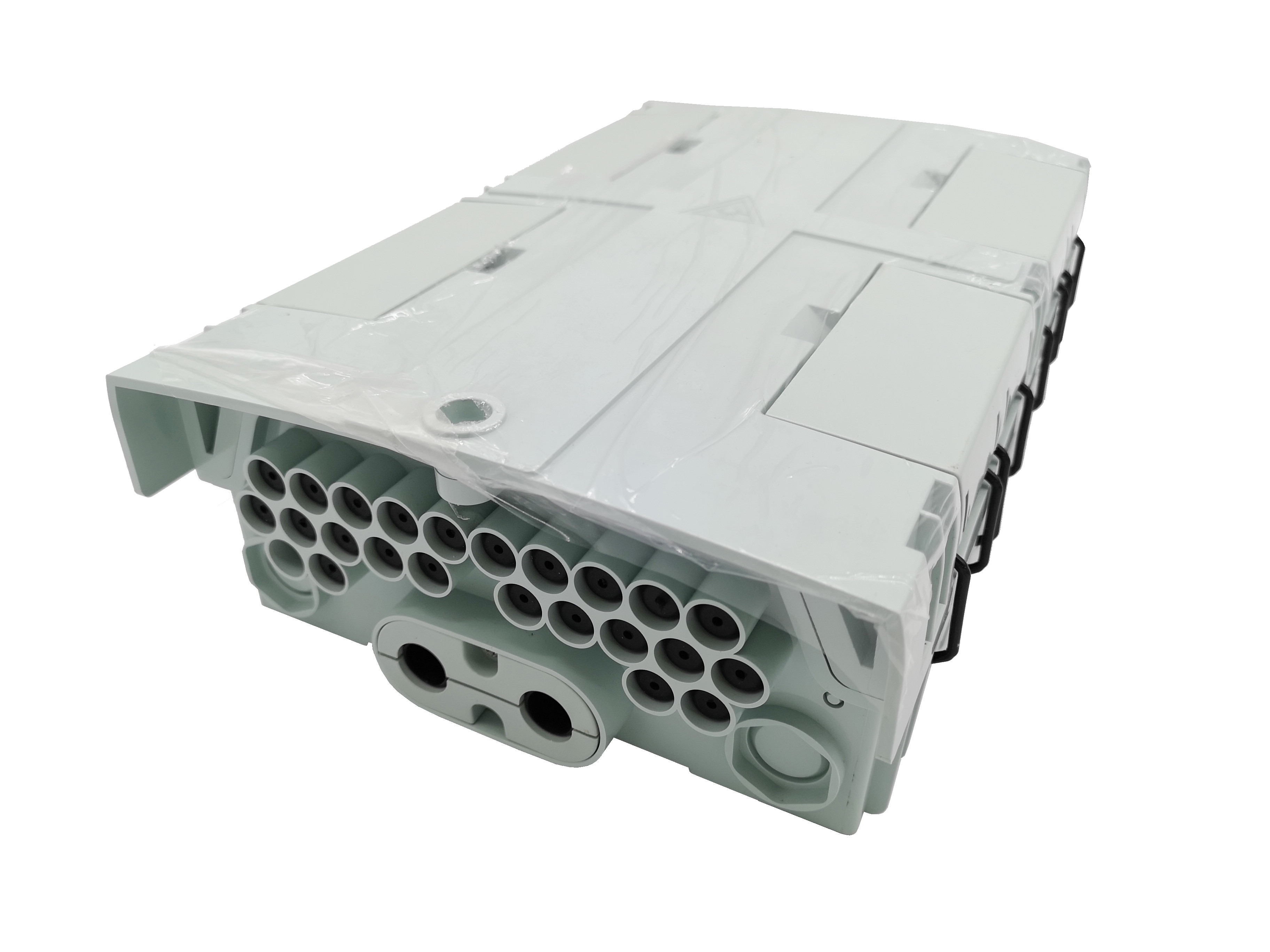

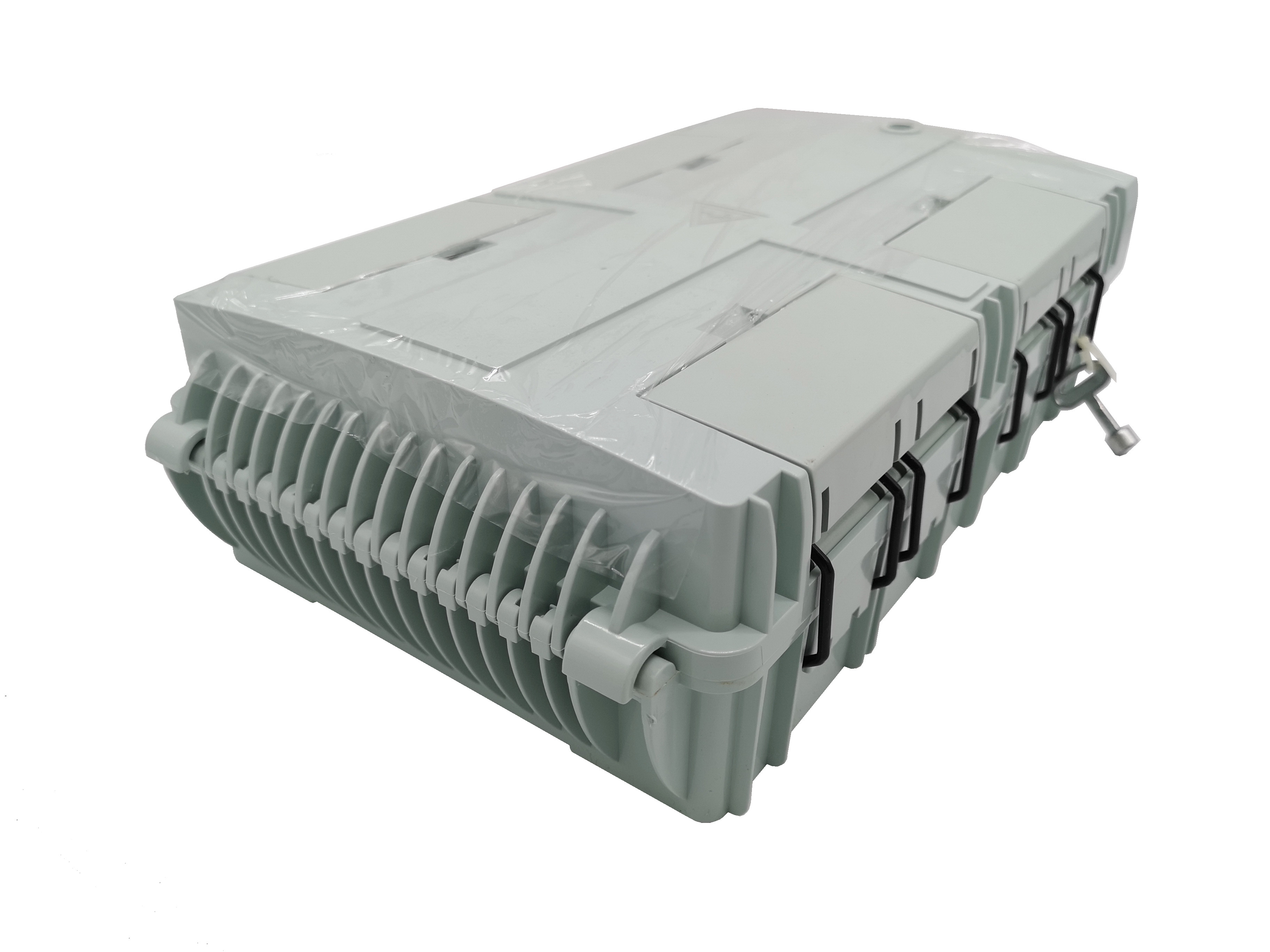

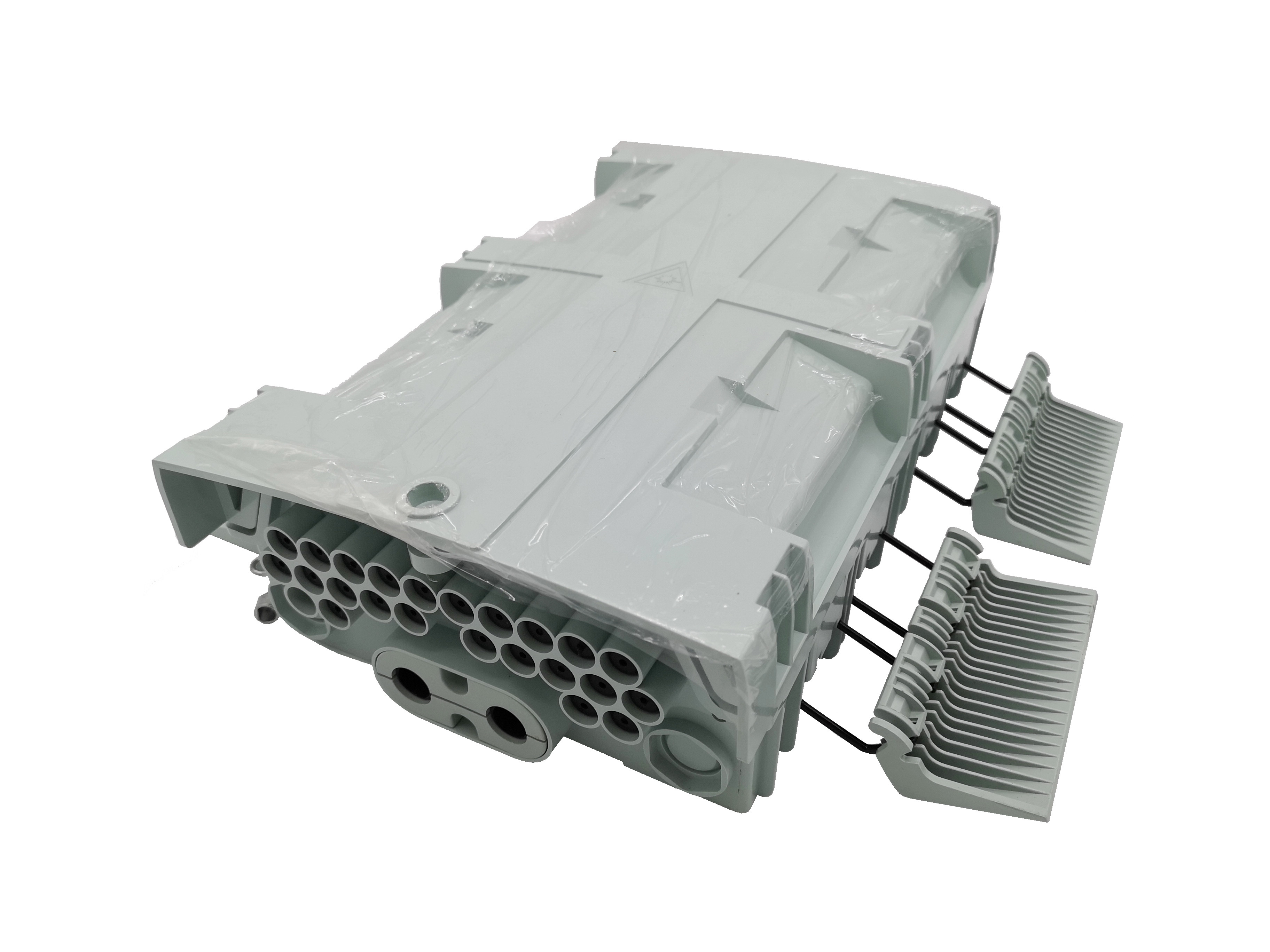

IP65 LC APC Duplex Adapter 2x32 Fiber Optic Splitter Box
24 Port Outdoor Pole Mount Fiber Optic Distribution Box with 2x32 Splitter IP65 LC/APC Duplex Adapter
The 24port fiber otpic access closure can hold up to 24 subscribers and 96 splicing points. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box. It can use SC, LC duplex adapters and pigtails or PLC splitter 1x2 1x4 1x8 1x16 or 2xN series. OEM print is ok.
Specifications
| Model | FDB0224M |
| Material | PC+ABS |
| Dimension | 345*220*95mm |
| Cable Entry | 1 uncut port: 10-16.5mm; 2 reserved cable entrance: 8-16.5mm |
| Drop cable port | 24 ports |
| Applicable cable diameter | 2*3mm FTTH drop cable, 2*5mm figure 8 FTTH drop cable |
| Max. Capacity | 96 Fibers, 4 trays x 24F (dual fiber) |
| Adapter | 24pcs LC duplex adapter |
| Sealing structure | Mechanical sealing |
| PLC Splitter | 2x32 steel tube plc splitter |
| Color | Gray |
| IP Grade | IP65 |
| Application | Wall mount, pole mount |
| Weight | 1.7KGS |
| Midspan entry | Yes |
| Storage (tube/micro cable) | Yes |
Standard Acessory
| Standard Accessories | Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, cable tube, key, wrench, rubber seal for cable entrance. |
| Optional Accessories | Pole mounted kits, Aerial hanging kits. |
Feature
- Integrated with 4pcs flap-up splice cassette, each tray is 12sleeve 1 layer, 24cores 2 layers with 1 cover at the top and fiber management tool.
- Max. splice capacity 96 fibers
- In the middle of splice tray itself and on box bottom there is splitter tube fix slot, also adapter fix slot on the bottom for splitter fix.
- Fiber bend radius control more than 40mm
- Mechanical sealing structure, the box totally have 1 mid-span cable entry, 2cable glands and 24 outports for drop cable.
- When cable enter the box, will have metal cable clamps to keep it in place.
- 24 SC/LC duplex adapter holder for drop cable patching, you can directly insert the fast connector with drop cable,then can finish the installation.
- 3 Pcs of 1*8 Splitter or 1pc 1*16 splitter with connectors can be installed as an option. if splitter without connectors, can install more.
- Suitable for the fusion splicer or mechanical splice
- Water-proof design with IP-65 Protection Level, whole box with rubber seal around, and laser mark highlight to prevent incorrect operation and there is lable mark to ease the operation and future maintenance.
- The box cover have a big laser mark on the middle to remind workers of the laser to damage the human eye, and 4 buckles ensure box close well and easy to open. All is brand new PC+ABS engineering plasticmaterial, anti-UV, anti-aging, can use in outdoor bad harsh environment.
Installation method:
pole mount = 2metal sheets + 2 pole ring
wall mount = 2metal sheets
- All stainless metal plate and anti-rusting bolts, nuts,the box open and close by the master key and 4 buckles at both side, the master key will be fix on the buckle when delivery to avoid loss.
Applications
- Wall mounting and pole mounting installation
- FTTH pre-installation and filed installation
- 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable
