ABS Module Box Type G652D 1x32 Fiber Optic PLC Splitter

Place of Origin china
Brand Name yingda
Certification ISO
Model Number YDPLC-AM-132-SASA-1015
Minimum Order Quantity 10pcs
Price negotiable
Packaging Details 1piece/box, 100pcs/carton box
Delivery Time 7days
Payment Terms L/C, T/T, Western Union
Supply Ability 20000pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Plastic Package Box Blister Box
Fiber Type G652D, G657A1 A2 Are Avaialble Fiber Mode Singlemode
Fiber Length Input:1meter, Output:1.5meter Connector Type SC/APC
Application PON, FTTH, ODN Network Installation Fiber Optic Rack Mount Patch Pane, Splice Closure, Or Cabinet
ABS Box Size 120*80*18mm Pigtails Jacket PVC
Fiber Color Blue/Orange/Green/Brown/Gray/White/Red/Black
High Light

1x32 Fiber Optic PLC Splitter

,

G652D Fiber Optic PLC Splitter

,

G652D Optical PLC Splitter

Leave a Message
Product Description

ABS Module Box Type G652D 1x32 Fiber Optic PLC Splitter



1x32 Fiber PLC Splitter ABS Module Box Type Single mode with Pigtails G652D PVC SC/APC 2.0mm Yellow





Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.


ABS PLC splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products (outdoor fiber distribution box) or network cabinets.



Yingda can offer 1x2 1x4, 1x8, 1x16, 1x32 1x64 split ratio, and package be mini module, ABS module, LGX modular, rack type, or closure type of optical plc splitters on different application.



ABS Module Box Type G652D 1x32 Fiber Optic PLC Splitter 0



Technical specification







Optical Performance

Unit

Specification

Insertion Loss (without Connector)

MAX

dB

16.8

Insertion Loss of Connector

MAX

dB

0.1

Insertion Loss  (with Connector)

MAX

dB

17.0

Uniformity Loss

MAX

dB

1.5

Polarization Dependent Loss

MAX

dB

0.3

Wavelength Bandwidth

MIN

nm

1260~1650

Return Loss (All Port)

MIN

dB

50

Directivity

MIN

dB

55

Operating Temperature

oC

dB

-40~85

Mechanical and Configuration





Specification

Labelling (Label Material & Dimension)

-

75*50(mm)

Serialization (Laser Marking or others)

-

Label

PLC Splitter Packing

-

ABS Plastic Box

Package Diemension

-

18*80*120 (mm)

Fiber Type

-

G657A1, G652D

Fiber Color

-

Input: Original
Output: 4*8 Color(Blue/Orange/Green/Brown/Gray/White/Red/Black)

Tube Type

-

Φ2.0, PVC

Tube Color

-

Input: Yellow
Output: Yellow

Connector Type

-

Input: SC/APC
Output: SC/APC

Individual Test Data Sheet Format

Hardcopy

1310, 1490, 1550nm ILUFPDL



Product details

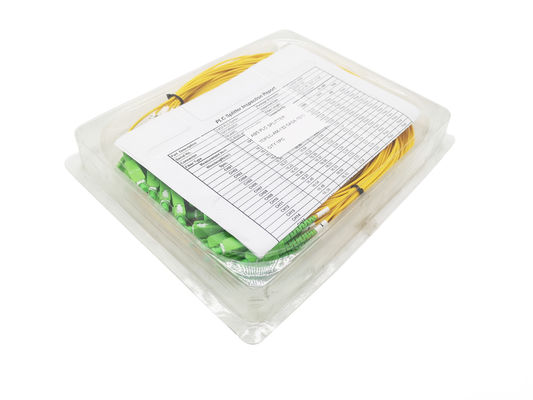

1PC of 1*32 PLC Splitter will be pack 1pc blister box, fixed with cable tie, with english version test report, different splitter ratio like 1x2, 1x4, 1x8, 1x16, 1x32,1x64 or 1x128 will use different size of blister box so as to make it at place during transporation.

ABS Module Box Type G652D 1x32 Fiber Optic PLC Splitter 1

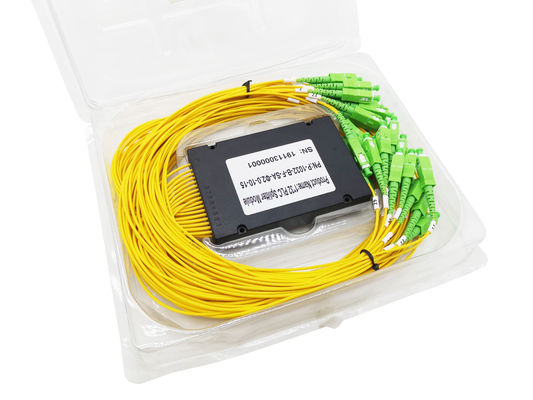

The ABS plastic box is black, international standard size, it can fix on the optical fiber rack mount patch panel, splice closure, or optica distribution box ODB OTB boxes by screws or with reserved fixtures. We will paste a sticker of the product basical information so as to make it easier to distinguish. Accept customer LOGO or company name silkprint or with logo labels for OEM design.



ABS Module Box Type G652D 1x32 Fiber Optic PLC Splitter 2

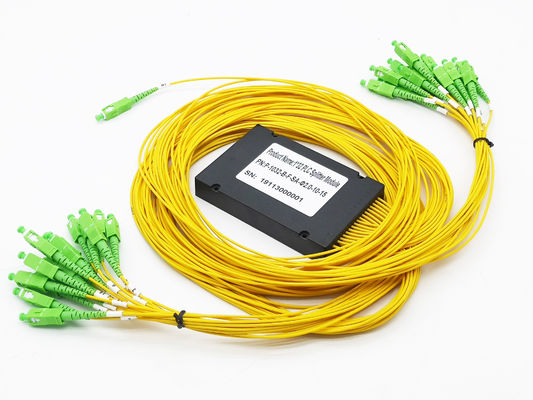

 There is number mark outputs of pigtails: 1 2 3 4 5 ... 32 so as to identify the outputs and track signals when on construction.

Also "IN" for input of splitter.



ABS Module Box Type G652D 1x32 Fiber Optic PLC Splitter 3

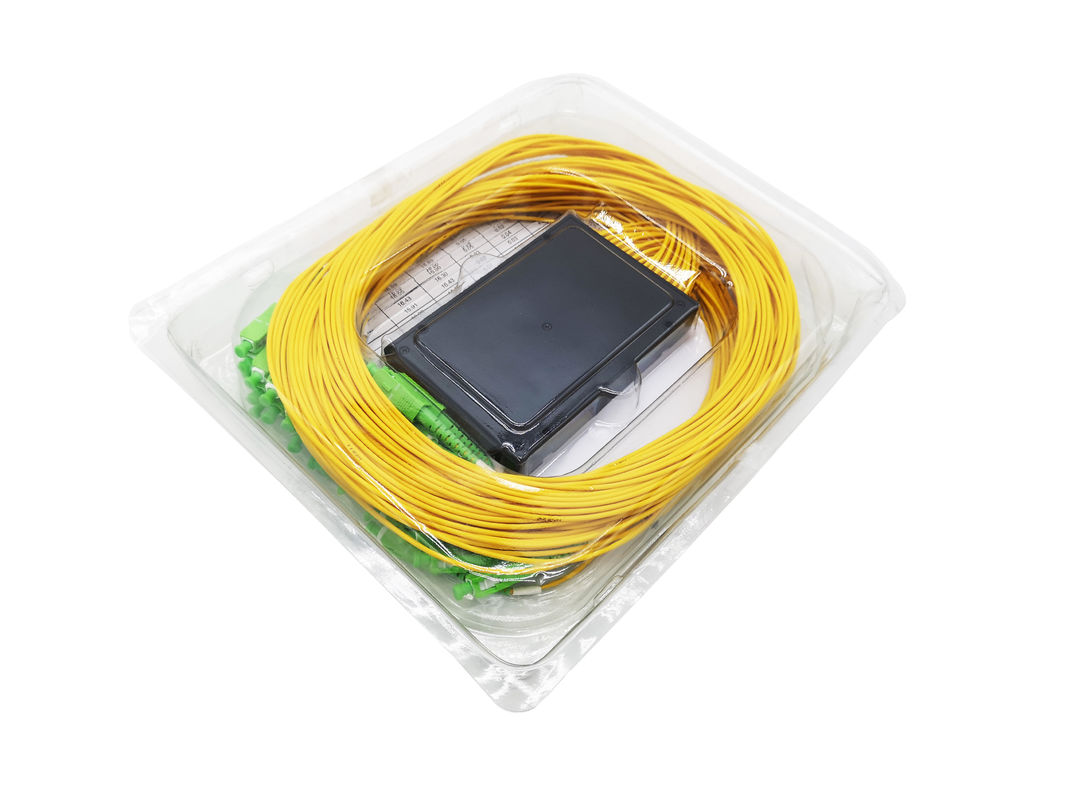

All the output and input of splitters will be with a number ring for easy operation, future remaintance or change;

Each layer of 16 pigtails is tied together to facilitate the upper and lower layers of distinction.

ABS Module Box Type G652D 1x32 Fiber Optic PLC Splitter 4

ABS Module Box Type G652D 1x32 Fiber Optic PLC Splitter 5ABS Module Box Type G652D 1x32 Fiber Optic PLC Splitter 6





Applications:

  • Fiber to The Point (FTTX)
  • Fiber to The Home (FTTH)
  • Passive Optical Networks (PON)
  • Gigabit Passive Optical Networks (GPON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment

ABS Module Box Type G652D 1x32 Fiber Optic PLC Splitter 7

Features:

  • Low insertion loss
  • Low Polarization Dependent Loss
  • Excellent Environmental Stability
  • Excellent Mechanical Stability
  • Telcordia GR-1221 and GR-1209


Order information



Model Split ratio Box size / mm Connectors
YDPLC-AM-102 1X2 100*80*10 SC/UPC=SU
YDPLC-AM-104 1X4 100*80*10 SC/APC=SA
YDPLC-AM-108 1X8 100*80*10 FC/UPC=FU
YDPLC-AM-116 1X16 120*80*18 FC/APC=FA
YDPLC-AM-132 1X32 120*80*18 LC/UPC=LU
YDPLC-AM-164 1X64 100*40*6 LC/APC=LA
YDPLC-AM-202 2X2 100*80*10 ...
YDPLC-AM-... ... ... ...
