24 Core FTTH Pole Mounted Splitter Pigtails Adapter Fiber Optic Cable Termination Box

Place of Origin CHINA
Brand Name YINGDA
Certification ISO,CE,ROHS
Model Number FDB0216HF-A
Minimum Order Quantity 10pcs
Price negotiable
Packaging Details 1pc/box, 10pcs / master box
Delivery Time 7-10days
Payment Terms T/T, Western Union, MoneyGram, L/C
Supply Ability 10k pices per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS+PC Color Black
Dimension 290*210*82mm Cable Entry 1 Mid Span, 2 Cable Glands Diameter:13.5mm
Cable Exit 16 Pieces Drop Cable Splice Tray 2pcs, Each 6cores
Box Type Fiber Splice Splitter Box Cable Diameter 12-15mm
Adapter Quantity 16pcs SC UPC APC Waterproof Grade IP65
High Light

1X16 Fiber Optic Splitter Box

,

IP65 Fiber Optic Splitter Box

,

FDB0216H Fiber Splitter Box

Leave a Message
Product Description

24 Core FTTH Pole Mounted Splitter Pigtails Adapter Fiber Optic Cable Termination Box



24Core FTTH Pole Mounted 1:16 Fiber Optic Splitter Termination Distribution Box Allen Screws SC Connectors Black



FDB0216H fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.



Specification

MODEL FDB0216HF-A
Dimension 290*210*82mm
Cable entry 1 mid span, 2cable glands
Cable exit 16pcs 2.0*3.0mm flat drop cable
Cable diameter 12.5-15mm
Max capacity Single layer 6 cores, double layer 12 cores
Splice tray qty 2pcs
PLC splitter 2pcs 1:8 mini plc splitteror
Adapter qty 16pc SC UPC  APC
Material PC+ABS
Color Grey, black
Net weight 1.2Kg
Protection level IP65



Features

  • The box casing is made of high quality engineering industrial plastic PC+ABS alloy material, strong and tough;
  • Outdoor application and good UV resistant, IP65 waterproof.
  • Bottom with splitter tube fix slot, and input connector slot, humanity design
  • Maximum12F splice capacity, stainless anti-rust bolts and nuts.
  • The adapter bracket has two fulcrums, which can be directly inserted into the reserved hole at the bottom, and can be taken out by hand, which is convenient for fiber reeling, construction, maintenance and expansion.
  • Fiber bend radius control more than 35mm.
  • 180 degree access with 2pcs of buckled lock structure (Allen screws).



Product Details

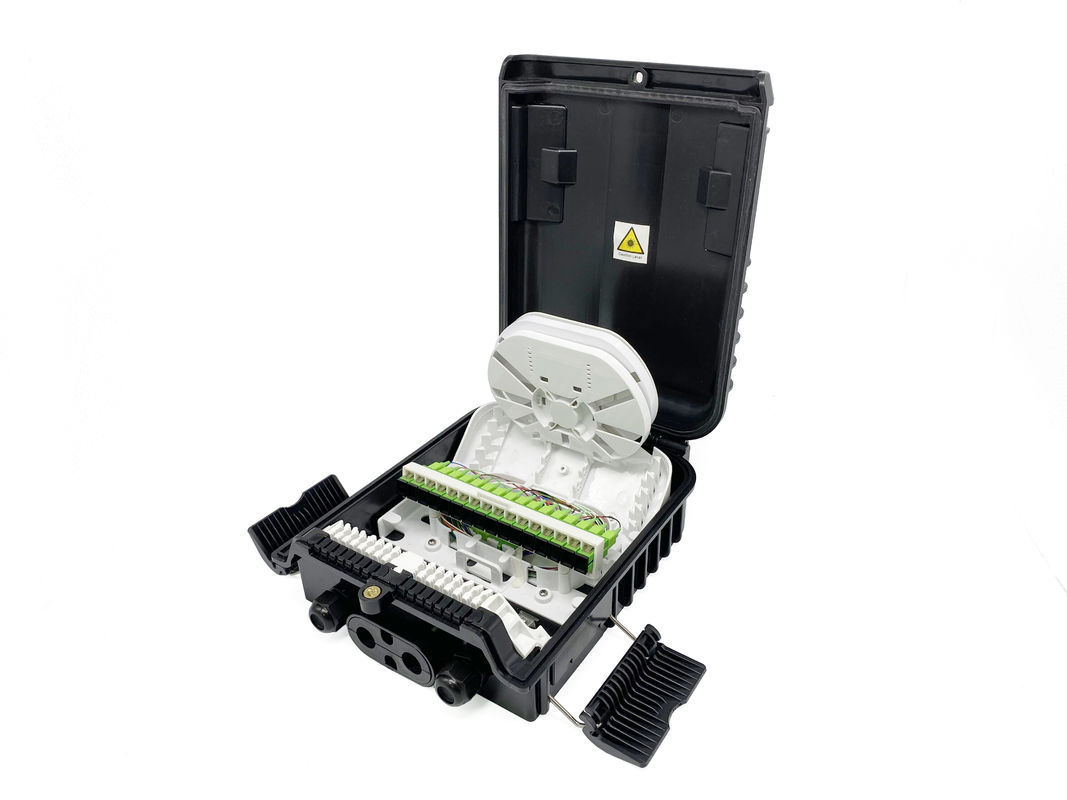

Fiber optic box is made of ABS PC material, brand new materila, not second.  And the internal have 3types design, below is for type 1 adapater plate with splice trays, which is most popular.

24 Core FTTH Pole Mounted  Splitter Pigtails Adapter Fiber Optic Cable Termination Box 0 24 Core FTTH Pole Mounted  Splitter Pigtails Adapter Fiber Optic Cable Termination Box 1

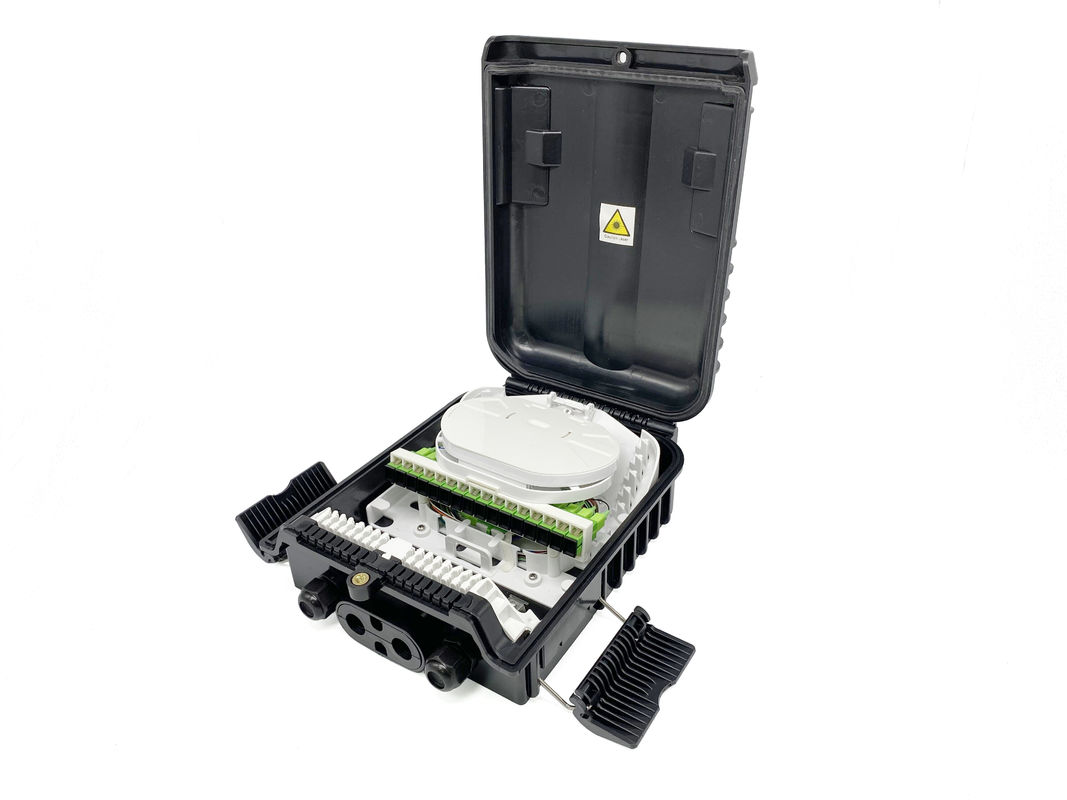

Maximum 4pcs white optical fiber fusion trays with lid, standard is 2pcs, ach tray capacity: 6 core 1layer, dual layer 12core

The tray is clip fix on the back brackets, you can take it off for fast and easy operation on site.



24 Core FTTH Pole Mounted  Splitter Pigtails Adapter Fiber Optic Cable Termination Box 2    24 Core FTTH Pole Mounted  Splitter Pigtails Adapter Fiber Optic Cable Termination Box 3

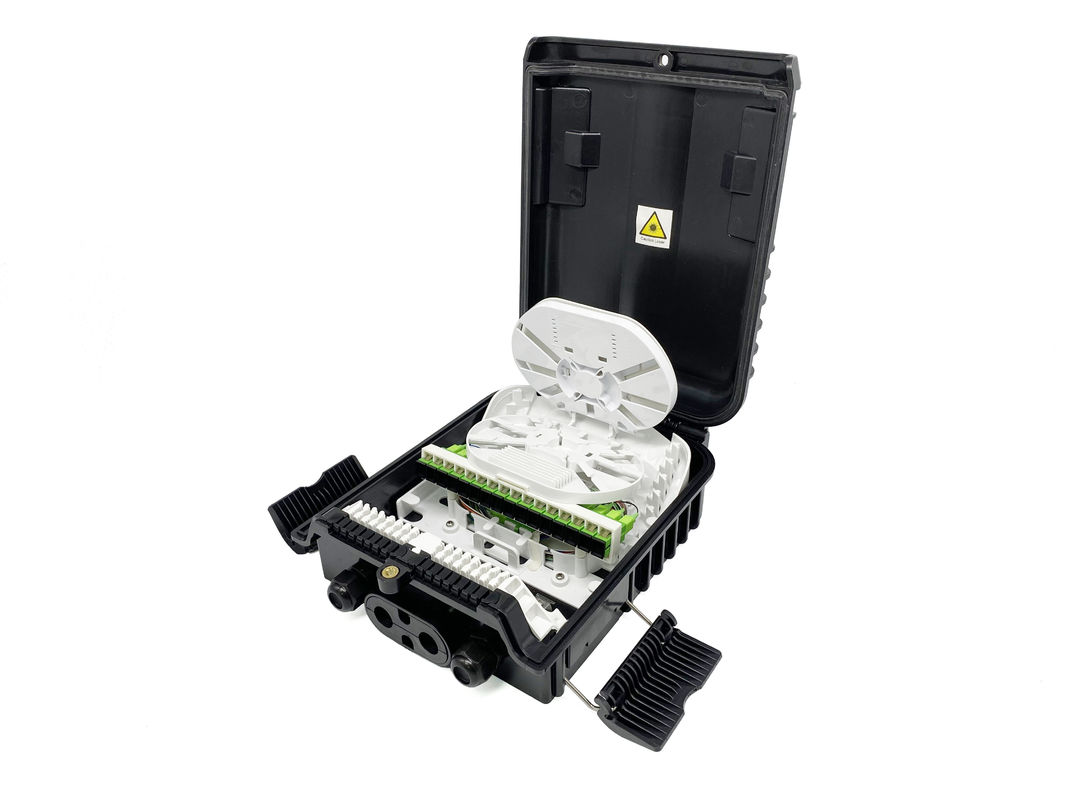

The bottom bracket have slots for steel tube and splitter input side connectors, which ensure stability during long time transportation, not fiber broken or mess. The adapter plate is plastic, and can hold max. 16pcs SC adapters or LC duplex adapters.



24 Core FTTH Pole Mounted  Splitter Pigtails Adapter Fiber Optic Cable Termination Box 4    24 Core FTTH Pole Mounted  Splitter Pigtails Adapter Fiber Optic Cable Termination Box 5



There are holes and projections on the adapter panel to fix the adapter, which can be fixed without screws. Only the protrusion should be aligned with the screw hole on the adapter and the metal spring piece of the adapter itself can be fixed.

The plate also can insert into the reserved hole to make it at place,no need screws to fix.



24 Core FTTH Pole Mounted  Splitter Pigtails Adapter Fiber Optic Cable Termination Box 6    24 Core FTTH Pole Mounted  Splitter Pigtails Adapter Fiber Optic Cable Termination Box 7



There is cable clamps to fix on the cable on the stainless brackets,total 4pcs cable entry: 1uncut port (mid span) and 2 cable glands, 16pcs drop cable exit.

24 Core FTTH Pole Mounted  Splitter Pigtails Adapter Fiber Optic Cable Termination Box 8    24 Core FTTH Pole Mounted  Splitter Pigtails Adapter Fiber Optic Cable Termination Box 9

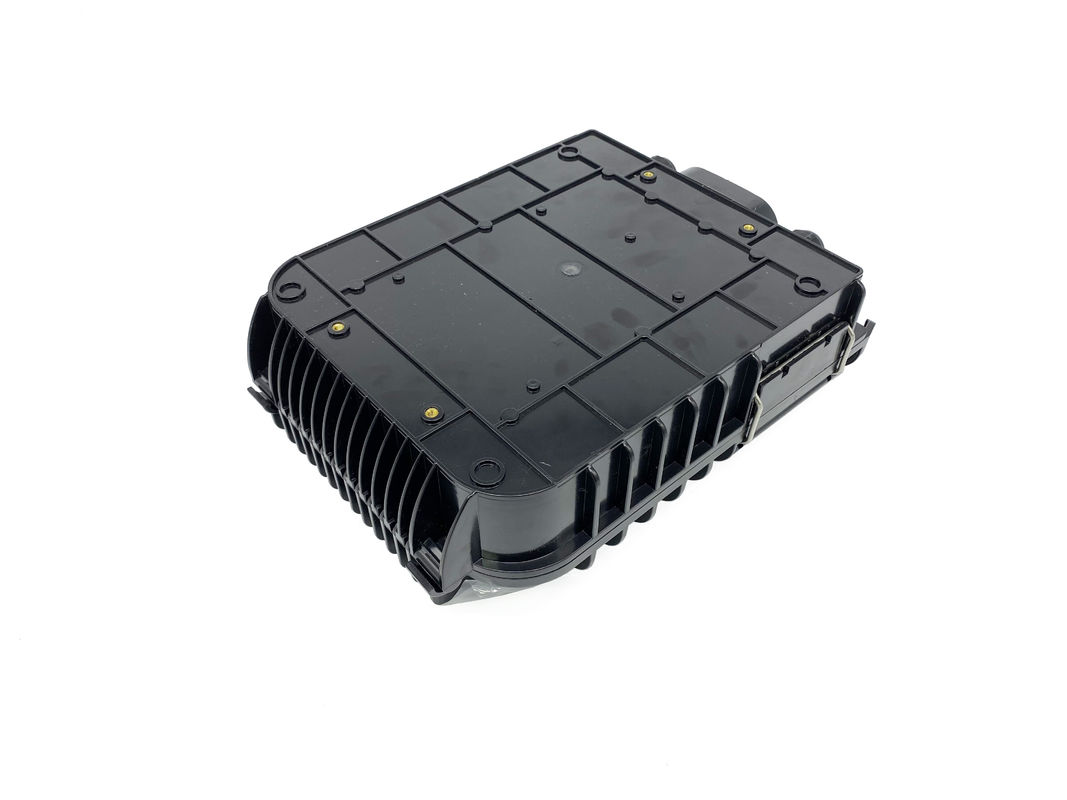

Total box is quite often use outdoor wall mount or pole mount, anti UV, there is laser mark sticker inside of the cover. The box is open and close by a screw rods in front and 2 Allen screws (brackets) at both sides. Which make fast and safe construction for FTTH.



    24 Core FTTH Pole Mounted  Splitter Pigtails Adapter Fiber Optic Cable Termination Box 1024 Core FTTH Pole Mounted  Splitter Pigtails Adapter Fiber Optic Cable Termination Box 11



Application

  • Wall-mounted, Pole-mounted Installation
  • Suitable for ftth pre-connectorized drop cable with SC/LC connectors

Standard accessory

Splice tray 2pcs, 4pcs wall mount expansion screws, 16pcs fiber protective sleeve, 4pcs cable clamp,nylon ties, adapter plate for 16 x adapters, cable protection tube, key, PG 13.5 cable glands for distribution ports, Pole mounted kits (optional).



24 Core FTTH Pole Mounted  Splitter Pigtails Adapter Fiber Optic Cable Termination Box 12

Related products:

24 Core FTTH Pole Mounted  Splitter Pigtails Adapter Fiber Optic Cable Termination Box 1324 Core FTTH Pole Mounted  Splitter Pigtails Adapter Fiber Optic Cable Termination Box 1424 Core FTTH Pole Mounted  Splitter Pigtails Adapter Fiber Optic Cable Termination Box 15





       Figure-8 drop cable                              SC fast connector                         SC  adaptor with flange



24 Core FTTH Pole Mounted  Splitter Pigtails Adapter Fiber Optic Cable Termination Box 1624 Core FTTH Pole Mounted  Splitter Pigtails Adapter Fiber Optic Cable Termination Box 1724 Core FTTH Pole Mounted  Splitter Pigtails Adapter Fiber Optic Cable Termination Box 18

                  FTTH patch cord                        Fiber optic pigtail                                 Mini Splitter
