Waterproof IP65 Ftth Fiber Optic Terminal Box 24 Port PC Material Pole / Wall Mounted

China Waterproof IP65 Ftth Fiber Optic Terminal Box 24 Port PC Material Pole / Wall Mounted supplier
Waterproof IP65 Ftth Fiber Optic Terminal Box 24 Port PC Material Pole / Wall Mounted supplier Waterproof IP65 Ftth Fiber Optic Terminal Box 24 Port PC Material Pole / Wall Mounted supplier Waterproof IP65 Ftth Fiber Optic Terminal Box 24 Port PC Material Pole / Wall Mounted supplier Waterproof IP65 Ftth Fiber Optic Terminal Box 24 Port PC Material Pole / Wall Mounted supplier

Large Image :  Waterproof IP65 Ftth Fiber Optic Terminal Box 24 Port PC Material Pole / Wall Mounted

Product Details:

Place of Origin: CHINA
Brand Name: yingda
Certification: ISO
Model Number: FDB0324

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiable
Packaging Details: 1pc/box, 10pcs/carton box
Delivery Time: 1week
Payment Terms: T/T, L/C
Contact Now
Detailed Product Description
Material: PC Color: White
Cable Entry: 3 Ports For Uncut Cable Cable Exit: 16ports, Each 2pcs Drpo Cable Ports
Adapter Qty: 24SC Splitter: 1x2,1x4, 1x8,1x16 Steel Tube Or ABS Module
Lock System: Key And Buckles Mounting Method: Pole / Wall Mounted

24 Port FTTH Box Pole Mount Waterproof IP65 With SC Adapters and Pigtails



This terminal box is used for drop cable or soft cable in ftth deployment, maximum can do 24 pcs subscribers,

it mix the function of fiber optic splitting, splicing, distribution and fiber storage in one box.



Specification

MODEL FDB0324
Dimension 334mm(W)x295mm(D)x116mm(D)
Cable ports 3 in, 32out
Cable diameter In:14mm ; out:3*2mm drop cable
Max. Adapter 24SC
Max. Splitter 1x8, 1x16,1x24 PLC splitter steel tube or ABS module
Color white
Capacity 24cores single fiber
Material PC
Waterproof grade IP65
Net weight 2.45kg
Quantity / carton 8 pcs
Gross weight / carton 24.5kg
Carton size 56*36*62cm



Box Size: 334.18*295.38*116.81mm

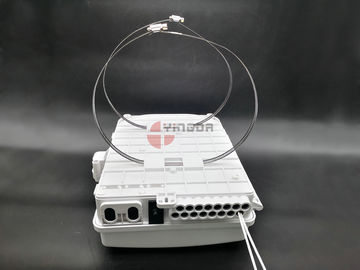

Waterproof IP65 Ftth Fiber Optic Terminal Box 24 Port PC Material Pole / Wall Mounted

Features

  • Industry Standard User Interface, be made of high impact plastic.
  • Can accommodate 1x8 & 1X16 &24 PLC splitter.
  • Anti-UV, Ultra violet resistant and rainfall resistant.
  • Up to 24 FTTH drops.
  • Wall and pole mountable.
  • 3 inlet ports, 24 outlet ports.
  • Round shape, hinge design

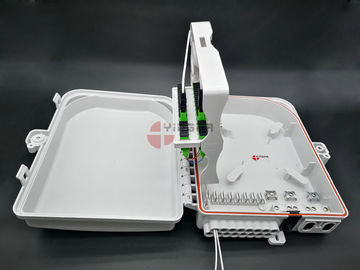

Overview:  complete with 24pcs S/APC pigtails and 24pcs SC/APC adapters

                   splice tray: upper -- distribution and splitting

                                     lower -- fusion and fiber storage

Waterproof IP65 Ftth Fiber Optic Terminal Box 24 Port PC Material Pole / Wall MountedWaterproof IP65 Ftth Fiber Optic Terminal Box 24 Port PC Material Pole / Wall Mounted

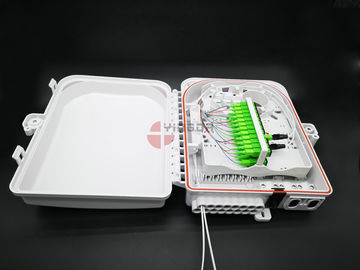

Adapter plate: 24pcs SC adapter, you can install screws on flanges of the adapter to make it more tight.

                        one side: 24pcs SC pigtails

                        the other side: SC mechanical fast connectors with drop cable

Waterproof IP65 Ftth Fiber Optic Terminal Box 24 Port PC Material Pole / Wall MountedWaterproof IP65 Ftth Fiber Optic Terminal Box 24 Port PC Material Pole / Wall Mounted

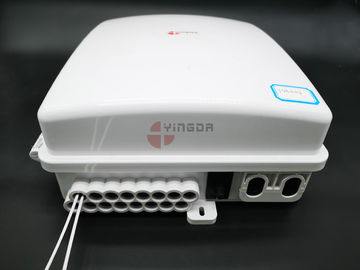

Cable port:

entry: 1 uncut part with 2ports, 1 rubber standby cable port, max. diameter:14mm; there is cable fixtion.

exit: 16pcs rubber seal, each 2 flat drop cable  2*3mm ports, total 32pcs.

Waterproof IP65 Ftth Fiber Optic Terminal Box 24 Port PC Material Pole / Wall MountedWaterproof IP65 Ftth Fiber Optic Terminal Box 24 Port PC Material Pole / Wall Mounted



Bottom of the terminal box:

bottom of the box have space for cable entry winding, and ABS splitter module fix, max. 1x16 splitter can be put here.

Waterproof IP65 Ftth Fiber Optic Terminal Box 24 Port PC Material Pole / Wall MountedWaterproof IP65 Ftth Fiber Optic Terminal Box 24 Port PC Material Pole / Wall Mounted



Application

  • Widely used in FTTH access network.
  • Telecommunication Networks
  • CATV Networks
  • Data communications Networks
  • Local Area Networks

Standard accessory

Heat shrink protection sleeve, buffer tube, nylon tie, label mark, expansion screws, etc.



Optional accessory:

Pole mount ring, adapter, pigtails, splitter, etc.
