External IP65 CPE Black PP Fiber Cable Joint Box Transformer 16 SC Adapter

  • External IP65 CPE Black PP Fiber Cable Joint Box Transformer 16 SC Adapter
  • External IP65 CPE Black PP Fiber Cable Joint Box Transformer 16 SC Adapter
  • External IP65 CPE Black PP Fiber Cable Joint Box Transformer 16 SC Adapter
  • External IP65 CPE Black PP Fiber Cable Joint Box Transformer 16 SC Adapter
  • External IP65 CPE Black PP Fiber Cable Joint Box Transformer 16 SC Adapter
Place of Origin china
Brand Name yingda
Certification ISO
Model Number FDB0216B
Minimum Order Quantity 1piece
Price negotiable
Packaging Details 1pc / box, 6 pcs / carton box
Delivery Time 5days
Payment Terms T/T, MoneyGram, Western Union, L/C
Supply Ability 10000pcs / month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material PP Color Black
Type Fiber Optic Splitter Box Application Ftth Box
Mounting Pole Mount, Wall Mount Feature 2pcs 1x8 Or 1x16 Splitter With 18SC Holder
Max Fusion 16 Cores Single Fiber Cable Port 1 Oval +16 Round Ports With Rubber Seal
High Light

fiber optic cable junction box

,

fiber optic cable joint box
Leave a Message
Product Description

External IP65 CPE Black PP Fiber Optic Cable Joint Box Transformer 16 SC Adapter



Network access point FDB0216B is an external use product for installation in overhead networking (pole/wall/steel wire).



Features

  • Made of high strength plastic engineering material, anti-aging, anti-UV and corrosion.
  • Mix splitting, splicing, distribution and fiber storage in one set, convenient for ftth deploying
  • Small size, unique design, round shape, smooth and strong.
  • Total closed with brackets, ropes and pole mount metal sheet.
  • Wall mount, pole mount ,aerial mount available.
  • Best for outdoor harsh environment, waterproof IP65 grade.
  • There is position on box surface for logo or brand, silk print or laser mark both ok.
  • The feeder cable can go in and through the box without cut, because the cable entry port is mid span, and mechanical sealing.
  • Reasonable and enough space for fiber cable management system, which ensure fiber radius <40mm.
  • Suitable for 16 pcs ftth (fiber to the home) drop cable distribution.

Specification

MODEL FDB0216B
Dimension 245*295*130mm
Material PP+GF
Cable port 1 oval + 16pcs drop cable or round cable
Cable diameter

Oval: 2 main cable (φ8-15mm) or 2 derivation cables (φ6-8mm)

16pcs: Drop Cable Low Friction 3x2mm or round 4.5-5.3mm
Fusion capacity 16 cores single fiber
Max. Adapter 16 SC +2SC
Max. Tray 2splice tray (16cores) + 1 adapter tray (16SC) or 4 splice trays (16cores).
Seal method mechanical



Box Overview:



External IP65 CPE Black PP Fiber Cable Joint Box Transformer 16 SC Adapter 0External IP65 CPE Black PP Fiber Cable Joint Box Transformer 16 SC Adapter 1

External IP65 CPE Black PP Fiber Cable Joint Box Transformer 16 SC Adapter 2External IP65 CPE Black PP Fiber Cable Joint Box Transformer 16 SC Adapter 3

External IP65 CPE Black PP Fiber Cable Joint Box Transformer 16 SC Adapter 4External IP65 CPE Black PP Fiber Cable Joint Box Transformer 16 SC Adapter 5

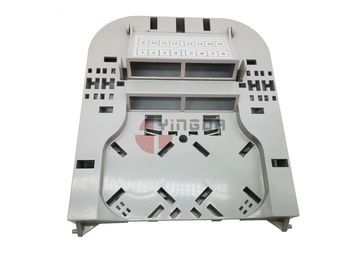

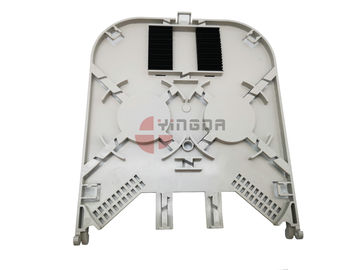

Splice & Adapter tray

External IP65 CPE Black PP Fiber Cable Joint Box Transformer 16 SC Adapter 6External IP65 CPE Black PP Fiber Cable Joint Box Transformer 16 SC Adapter 7

External IP65 CPE Black PP Fiber Cable Joint Box Transformer 16 SC Adapter 8External IP65 CPE Black PP Fiber Cable Joint Box Transformer 16 SC Adapter 9



Standard accessory

Plastic bracket, metal wall/pole mount kits, heat shrink protection sleeve, nylon tie, cable tie, label mark, buffer tube, etc.



How to open the box?

  1. Open the screw with a screwdriver.
  2. Open the bracket at right side, and loose the clip in front of the cable ports, open the front strip according to the picture direction.
  3. Take off the bracket from back, then can take off the lid by hand.

External IP65 CPE Black PP Fiber Cable Joint Box Transformer 16 SC Adapter 10

Care and safety

Be careful when handing cables and optical cords, especially in the management of bare optical fibers.

During accommodation of the basic units within the product, check the bending radius and nay other interference with other components while opening and closing the product.

Optical connectors must be clean before each connection and every re-connection.

Stay alert for laser radiation warnings, do not manipulate connectors when lasers are on and do not turn the connectors towards the eyes.
