Plastic 2x4 Fiber PLC Splitter LGX Cassette Modular With LC/APC Duplex Fiber Optic Connector

China Plastic 2x4 Fiber PLC Splitter LGX Cassette Modular With LC/APC Duplex Fiber Optic Connector supplier
Plastic 2x4 Fiber PLC Splitter LGX Cassette Modular With LC/APC Duplex Fiber Optic Connector supplier Plastic 2x4 Fiber PLC Splitter LGX Cassette Modular With LC/APC Duplex Fiber Optic Connector supplier Plastic 2x4 Fiber PLC Splitter LGX Cassette Modular With LC/APC Duplex Fiber Optic Connector supplier Plastic 2x4 Fiber PLC Splitter LGX Cassette Modular With LC/APC Duplex Fiber Optic Connector supplier

Large Image :  Plastic 2x4 Fiber PLC Splitter LGX Cassette Modular With LC/APC Duplex Fiber Optic Connector

Product Details:

Place of Origin: CHINA
Brand Name: yingda
Certification: ISO
Model Number: YDPLC-LGX-204LA

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiable
Packaging Details: 1PC/PLASTIC BAG, 40pcs/carton box
Delivery Time: 5DAYS
Payment Terms: T/T, Western Union, MoneyGram, L/C
Contact Now
Detailed Product Description
Box Size: 130*100*25mm Material: Flame-retardant ABS
Color: Gray Cable Port: 9 Port, 1in, 8out
Splitter Type: 1x2 1x4 1x8 Or 2x2 2x4 2x8 Plc Splitter Fiber Type: Single Mode 9/125um
Loose Tube: 0.9mm Diameter White

Plastic 2x4 PLC Splitter LGX cassette Modular with LC/APC Duplex Fiber Optic Connector Blue



Form a unified standard optical splitter, plug-piece modular structure, can be used in optical cable transfer box,

optical splitter boxes and 19-inch rack, the product structure tso facilitate the optical splitter installation

and replacement.



These modules are compatible with all of our rack and wall mount enclosures & patch panels, available in all

connector types. Push/pull fasteners make plates easy to install and remove for service. All modules are made

of plastic. Cassette Face plates are standard LGX dimensions and compatible with most manufacturers.



LGX Box Dimension:



Splitting ratio Dimension (H×W×D)mm
1x2 / 2x2 (Inserts) 130×100×25
1x4 / 2x4 (inserts)
1x8 / 2x8(Inserts)
1x16 / 2x16 (Inserts) 130×100×50
1x32 / 2x32 (Inserts) 267×100×50



Product details:



Plastic 2x4 Fiber PLC Splitter LGX Cassette Modular With LC/APC Duplex Fiber Optic ConnectorPlastic 2x4 Fiber PLC Splitter LGX Cassette Modular With LC/APC Duplex Fiber Optic Connector

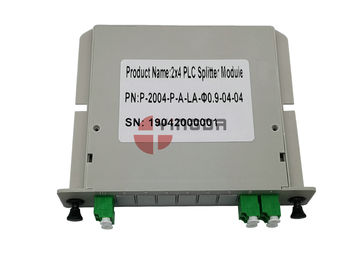

top and back view: top with labels: item name, part number, serial number, if you have brand, can OEM.



Plastic 2x4 Fiber PLC Splitter LGX Cassette Modular With LC/APC Duplex Fiber Optic ConnectorPlastic 2x4 Fiber PLC Splitter LGX Cassette Modular With LC/APC Duplex Fiber Optic Connector

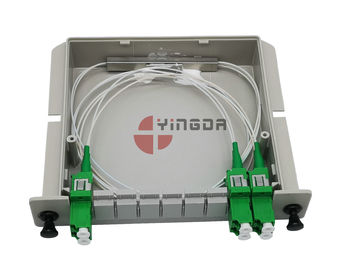

Inner box with 1pc 2x4 plc splitter steel tube 900um G657A1 LSZH, white color tube + 3 pcs LC/APC duplex adapters

there is steel tube fixing slot, with glue to fix.



Plastic 2x4 Fiber PLC Splitter LGX Cassette Modular With LC/APC Duplex Fiber Optic ConnectorPlastic 2x4 Fiber PLC Splitter LGX Cassette Modular With LC/APC Duplex Fiber Optic Connector

each box with 1 sheet test report, all the tube is fixed on the back bottom of the box, it will be stable during transporation.



Plastic 2x4 Fiber PLC Splitter LGX Cassette Modular With LC/APC Duplex Fiber Optic ConnectorPlastic 2x4 Fiber PLC Splitter LGX Cassette Modular With LC/APC Duplex Fiber Optic Connector

there is plastic blocks to prevent the dust, wet or insect from entering, if future need to use, take it off by hand.



Application:

CATV/Telecom/LAN/WAN/Data Centers/Medical/Military/Wireless/Broadband

Plastic 2x4 Fiber PLC Splitter LGX Cassette Modular With LC/APC Duplex Fiber Optic Connector





Order information:

PLC-LGX-XXX/XXX

- 1 / 2

PLC 1 Split ratio 2 connector in/out port
LGX Modular

102=1*2

104=1*4

...

SA=SC/APC

SU=SC/UPC

ST=ST

...
