White FTTH Fiber Optic Termination Splitter Box Mini Mid Span 6 Cores Wall Mounting

China White FTTH Fiber Optic Termination Splitter Box Mini Mid Span 6 Cores Wall Mounting supplier
White FTTH Fiber Optic Termination Splitter Box Mini Mid Span 6 Cores Wall Mounting supplier White FTTH Fiber Optic Termination Splitter Box Mini Mid Span 6 Cores Wall Mounting supplier White FTTH Fiber Optic Termination Splitter Box Mini Mid Span 6 Cores Wall Mounting supplier White FTTH Fiber Optic Termination Splitter Box Mini Mid Span 6 Cores Wall Mounting supplier

Large Image :  White FTTH Fiber Optic Termination Splitter Box Mini Mid Span 6 Cores Wall Mounting

Product Details:

Place of Origin: SHENZHEN
Brand Name: YINGDA
Certification: ISO
Model Number: FTB-008-SC06

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: 1 pc / box, 60 pcs / carton box
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Contact Now
Detailed Product Description
Material: ABS+PC Color: Gray
Cable Port: 2 In 8 Out Fusion Capacity: 8 Cores
Splitter: 1x2,1x4,1x8 Steel Tub Plc Splitter Connector: SC/UPC
Input Diameter: 12 Mm Output Diameter: 2*3.0 Mm
Features: Laser Mark, Or OEM , 2 Removable Cover Application: Wall Mounted Indoor

White FTTH Mini Mid Span 6 Cores Fiber Optic Termination Splitter Box Wall Mounting



This plastic terminal box is indoor use only, mainly for distribution vertical cable from patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws.



The cover of the box is fixed with screws into the bottom, and the front lid of the outputs to adapter is hinged with the upper parts, and it is fixed with screws to the bottom. Opening of the lid will not affect the movement of the other parts of the box, this unique design makes the box more safe, nice and humanity when installation on site and afterwards possible maintenance.



There are 1 splice tray for max. 8 fibers fusion splice, it has enough space for 8 fiber buffer cable or single fiber 1.5meter storage, also it can split 1x2,1x4,1x8,2x2,2x4 mini splitter, mixing fusion, splittering, distribution and storage in a box. The fiber bending radius minimum is 20mm.



Specification:

Model FTB-008
Dimension (H*W*D) 170*130*40mm
Cable ports 2in, 8out
Cable dimeter In:12mm, out: 2*3.0mm
Installation Wall mounted
Max. Fusion Capacity 4cores (bunchy fiber)
Splice tray 1pc
Material ABS+PC
Color Gray
Max. Splitter 1x2,1x4,1x8, 2x2, 2x4 mini splitter
Max. Adapter

8pcs SC simplex

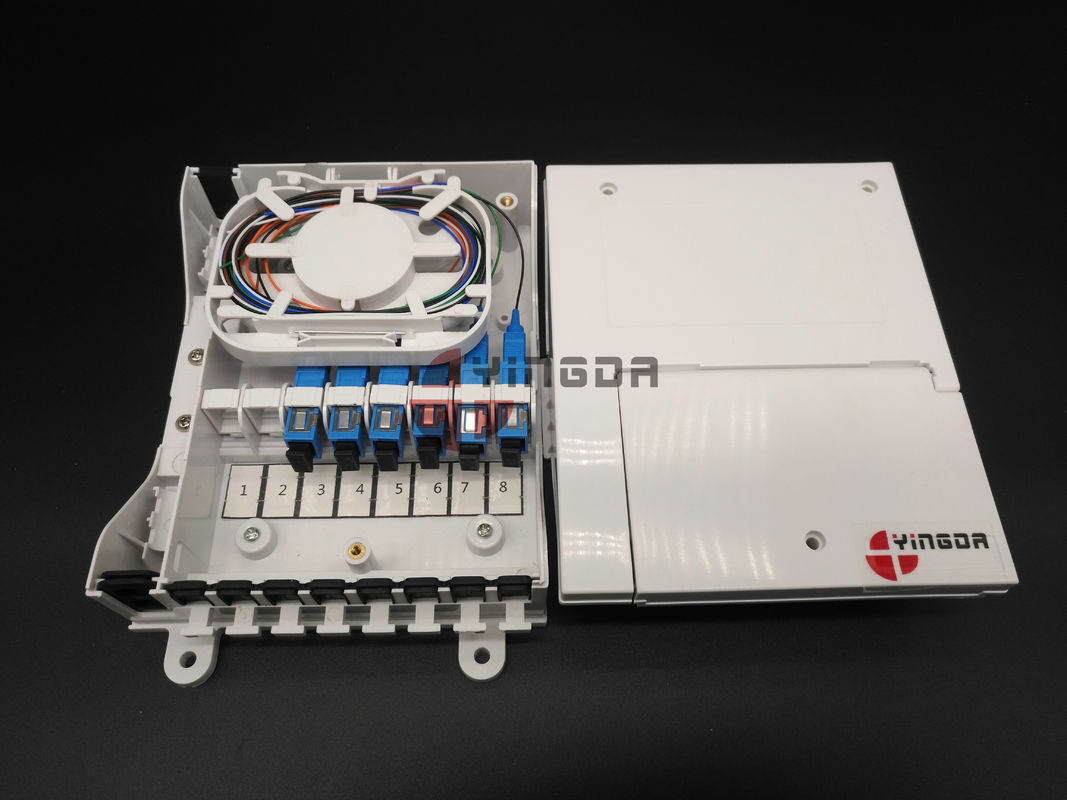

Outer apperance:
White FTTH Fiber Optic Termination Splitter Box Mini Mid Span 6 Cores Wall MountingWhite FTTH Fiber Optic Termination Splitter Box Mini Mid Span 6 Cores Wall Mounting

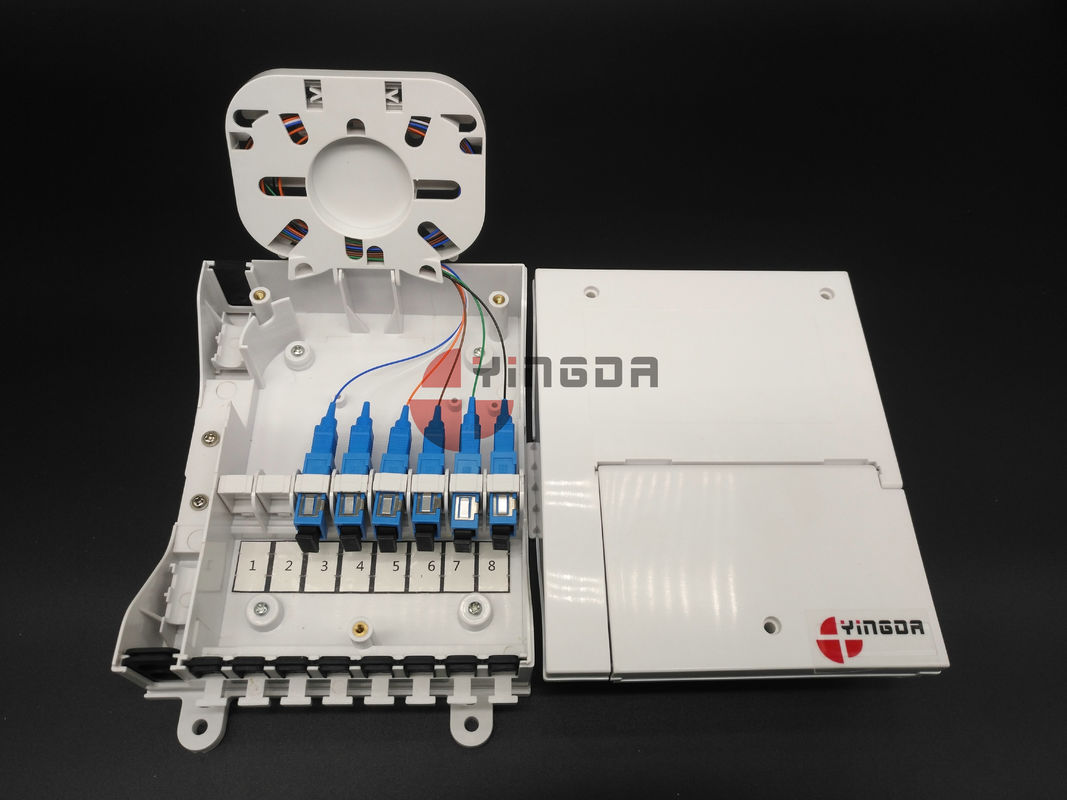

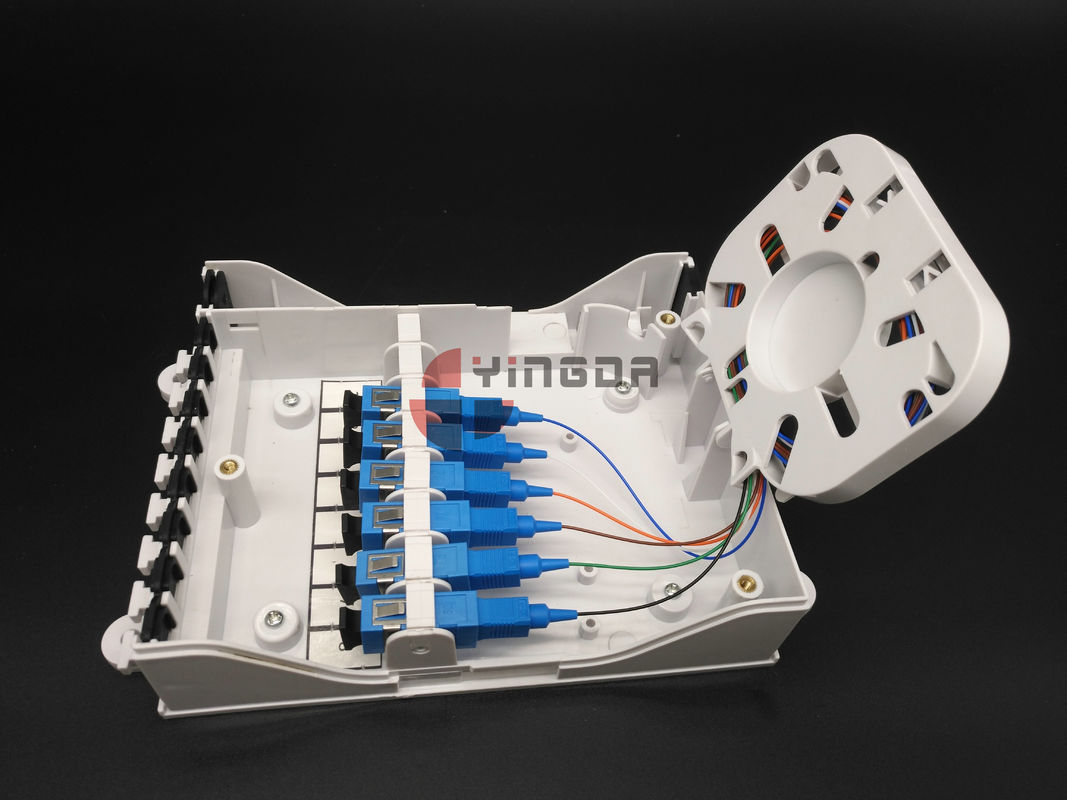

Overview:

box and lid is seperated, lid is 2 covers in one set.

whole box is 3 main area: 1 is for feeder cable in and out at left side, the right is divided into 2 area, the upper is for splice tray fusion, splitter distribute and fiber storage. the down area is for adapter and ftth cable outputs.



White FTTH Fiber Optic Termination Splitter Box Mini Mid Span 6 Cores Wall MountingWhite FTTH Fiber Optic Termination Splitter Box Mini Mid Span 6 Cores Wall Mounting

Bottom and cover:

the bottom is with strength strips and 4 wall mount srews holes, small size, light weight.

box is made of PC+ABS brand new material, no second hand, it fix on the box with 20mm screw rods.



White FTTH Fiber Optic Termination Splitter Box Mini Mid Span 6 Cores Wall MountingWhite FTTH Fiber Optic Termination Splitter Box Mini Mid Span 6 Cores Wall Mounting

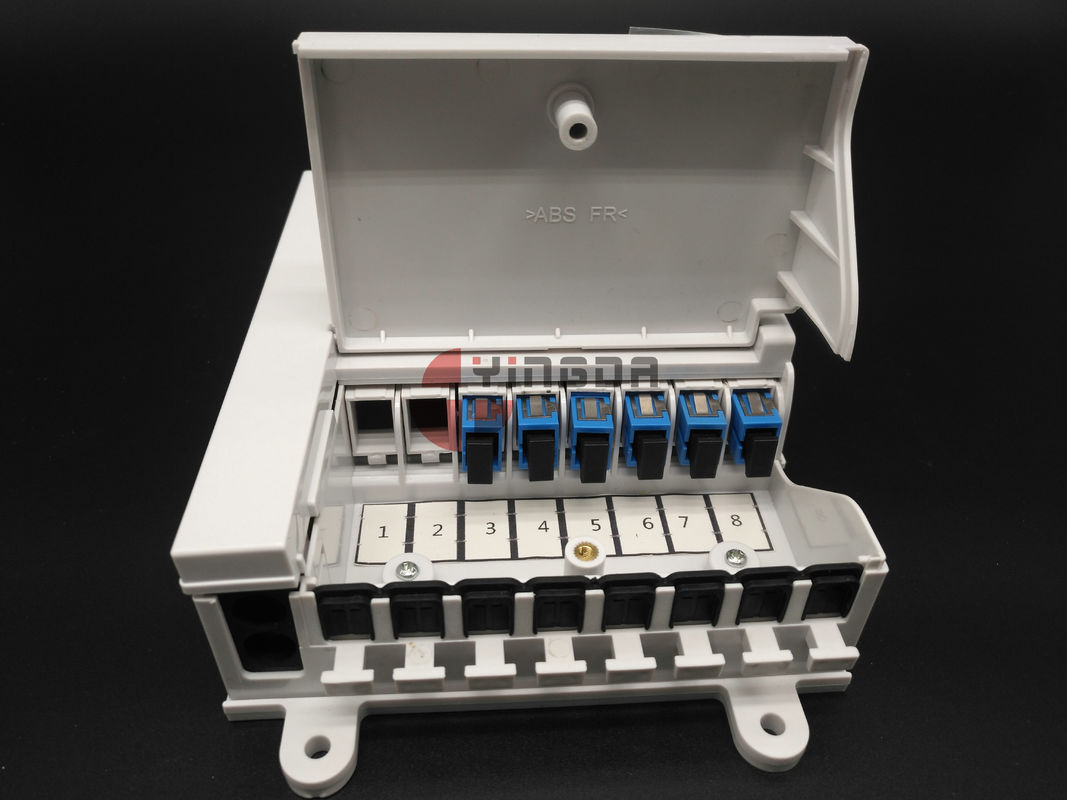

adapte holder and cable sealing:

there are 8pcs adapter holder, each is movable, SC without flange can be use, can stick a number lable in front.



White FTTH Fiber Optic Termination Splitter Box Mini Mid Span 6 Cores Wall MountingWhite FTTH Fiber Optic Termination Splitter Box Mini Mid Span 6 Cores Wall Mounting

Cable ports:

The entry 2ports can use multi-fiber cable maximum diameter 12mm, it can also use un-cut cable goo through the box without cutting, more convenient and fast to installation. The output ports 8pcs can do 2*3mm diameter cable, especially for FTTH drop cable figure-8 type. There are cable tie wraps or cable fixtures for inputs or outputs.



Features

  • 2inlet, 8outlets
  • Max. 8 ftth drops, 8SC, 8 cores for fusion
  • Life span 20years, IP54.
  • The both cover is removable.
  • Can use PLC splitter mini module 1x2,1x4,1x8
  • High strength engineering plastic, compact size, light weight
  • All the materials brand new,non toxic and dermatologically safe.



Standard package:

The box is provide closed and will come equipped with all the elements, material consumable and tools necessary for the mounting and connection.



Accessories like below:

White FTTH Fiber Optic Termination Splitter Box Mini Mid Span 6 Cores Wall Mounting

  • Cable nylon ties
  • Heat shrinkable tube
  • Wall mount expansion screws
  • Sealing of inputs or outputs
  • Adapters or plc splitter optional pre-terminated at factory
  • English or Spanish instruction manual
