NAP FDB Fiber Optic Splitter Box 16 Ports Wall / Pole Mount Gray Color Thunder Proof

China NAP FDB Fiber Optic Splitter Box 16 Ports Wall / Pole Mount Gray Color Thunder Proof supplier
NAP FDB Fiber Optic Splitter Box 16 Ports Wall / Pole Mount Gray Color Thunder Proof supplier NAP FDB Fiber Optic Splitter Box 16 Ports Wall / Pole Mount Gray Color Thunder Proof supplier NAP FDB Fiber Optic Splitter Box 16 Ports Wall / Pole Mount Gray Color Thunder Proof supplier NAP FDB Fiber Optic Splitter Box 16 Ports Wall / Pole Mount Gray Color Thunder Proof supplier NAP FDB Fiber Optic Splitter Box 16 Ports Wall / Pole Mount Gray Color Thunder Proof supplier

Large Image :  NAP FDB Fiber Optic Splitter Box 16 Ports Wall / Pole Mount Gray Color Thunder Proof

Product Details:

Place of Origin: CHINA
Brand Name: yingda
Certification: ISO, ROHS, SGS
Model Number: FDB0216W-10802SA-LGX

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiable
Packaging Details: 1 pc / carton box, 10 pcs / master box
Payment Terms: T/T, Western Union
Contact Now
Detailed Product Description
Material: ABS+PC Color: Gray
Dimension: 274*175*82 Mm Application: Fiber To The Home
Installation Method: Wall Mount, Pole Mount Drop Cable Size: 2*3mm Indoor Ftth Flat Cable
Splitter Type: LGX Module Plc Splitter

IP65 Exterior NAP FDB BOX 16 Ports Outdoor Fiber Cable Distrition Splitting Box



ODP FDB0216W type Fiber Optic Splitter Distribution Box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



Specification

Model FDB0216W
Dimension(L*W*D) 274*175*82 mm
Max capacity 1x8 micro mini plc splitter 2 pieces
SC simplex adapter 16 pieces
Fusion splice 16fibers
Environmental requirement

Working temperature:-40℃~+60℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KP~106Kpa

Main technical

Insertion loss:≤0.2dB

Return loss:≥50dB(upc); ≥60dB(APC)

Life of insertion and extraction:>1000 times

Thunder-proof technical

The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V(DC);  IR≥2MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover; U≥3000V



Product Details

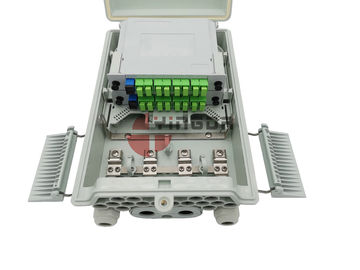

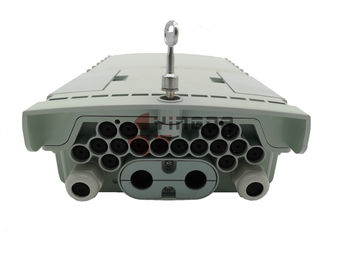

Front & side view:

Total enclosed with metal key and 2xbuckles. lid and bottom with hinge, can be 180degree open.

Gray color, ABS+PC color, Black MOQ:200PCS

NAP FDB Fiber Optic Splitter Box 16 Ports Wall / Pole Mount Gray Color Thunder ProofNAP FDB Fiber Optic Splitter Box 16 Ports Wall / Pole Mount Gray Color Thunder Proof

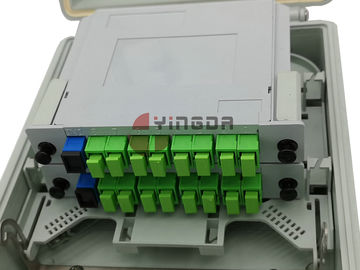

Internal splitting plate:

the splitter module can be fix on the plate with clips to fix it. max. 2pcs 1x8 or 1pc 1x16 splitter cassette.

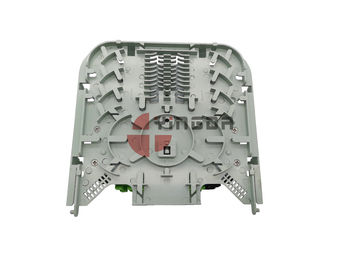

Back of the plate can be fusion max.16cores single fiber and enough fiber storage and management area.

the bottom of box can be cable routing and storage for feeder cable entry and exit.

the plate can be taken off by hand, and fix on the metal holders on the box for better construction.



NAP FDB Fiber Optic Splitter Box 16 Ports Wall / Pole Mount Gray Color Thunder ProofNAP FDB Fiber Optic Splitter Box 16 Ports Wall / Pole Mount Gray Color Thunder Proof

NAP FDB Fiber Optic Splitter Box 16 Ports Wall / Pole Mount Gray Color Thunder ProofNAP FDB Fiber Optic Splitter Box 16 Ports Wall / Pole Mount Gray Color Thunder Proof



2 Types of cable management units:



NAP FDB Fiber Optic Splitter Box 16 Ports Wall / Pole Mount Gray Color Thunder Proof



Standard accessory:

box, key, insulation tape, cable ties, nylon tie, wall mount screws, heatshrink protection sleeve, 2 metal sheet for pole mount or wall mount

NAP FDB Fiber Optic Splitter Box 16 Ports Wall / Pole Mount Gray Color Thunder Proof

Features

1.Total enclosed structure with brackets and metal screw

2. Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging,protection level up to IP65.

3.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

4.Cable,pigtails,patch cords are running through own path without disturbing each other,cassette type SC adaptor installation, easy maintenance.

5. Distribution panel can be flipped up, feeder cable can be placed by express port, easy for maintenance and installation.

6. Wall-mounted or poled-mounted, both indoor and outdoor use.



Standard accessory

Screw, base, cover, connecting screw, rubber seal, lock blot, door clip, door clip conecting bracket, loop ring, flap fixed bracket, flip plate A/B/C, flip bracket, fiber fixer, grouding bracket, waterproof blocker, cable exit mat,etc.



Package information

Packing 500*450*400MM
Weight 20kgs
Quantity 10 pcs/box
