E2000 APC to SC UPC Fiber Optic Patch Cord Singlemode Simplex 1.8mm LSZH Riser Cable

China E2000 APC to SC UPC Fiber Optic Patch Cord  Singlemode Simplex 1.8mm LSZH Riser Cable supplier
E2000 APC to SC UPC Fiber Optic Patch Cord  Singlemode Simplex 1.8mm LSZH Riser Cable supplier E2000 APC to SC UPC Fiber Optic Patch Cord  Singlemode Simplex 1.8mm LSZH Riser Cable supplier E2000 APC to SC UPC Fiber Optic Patch Cord  Singlemode Simplex 1.8mm LSZH Riser Cable supplier E2000 APC to SC UPC Fiber Optic Patch Cord  Singlemode Simplex 1.8mm LSZH Riser Cable supplier

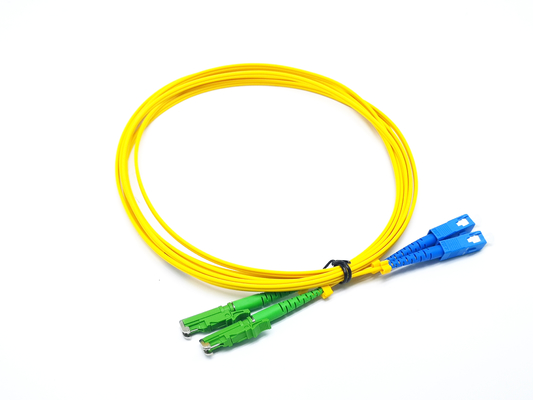

Large Image :  E2000 APC to SC UPC Fiber Optic Patch Cord Singlemode Simplex 1.8mm LSZH Riser Cable

Product Details:

Place of Origin: SHENZHEN,CHINA
Brand Name: YINGDA
Certification: ISO SGS ROHS
Model Number: E2000APCSC-SMSX-10-1.8mm

Payment & Shipping Terms:

Minimum Order Quantity: 500 pcs
Price: negotiable
Packaging Details: 1 pc / plastic bag
Delivery Time: 5-8days after payment
Supply Ability: 15,000 pcs / day
Contact Now
Detailed Product Description
Connector: E2000/APC To SC Fiber Count: Simplex
Insertion Loss: < 0.3 DB Return Loss: >55dB Upc, >60dB APC
Fiber Length: 10 Meter Cable Diameter: 1.8 Mm
Cable Color: Yellow Connector Color: Blue,green

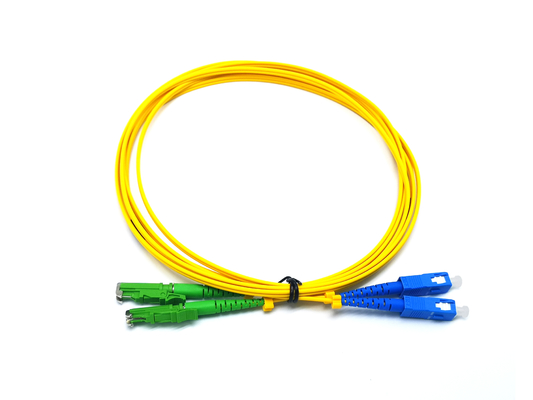

E2000  APC to SC UPC Fiber Optic Patch Cord  Singlemode Simplex 1.8mm LSZH Riser Cable



Application

  1. Fiber communication system
  2. Fiber access network
  3. Data transmission
  4. CATV
  5. LAN
  6. Test equipment
  7. Optical fiber sensor



Fiber optic patch cord is one of most commonly used components in fiber optic network. fiber optic

patch cords sometimes is also called fiber optic jumper or fiber optic patch cables. generally there

are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode fiber optic

patch cords. here the word mode means the transmitting mode of the fiber optic light in the fiber optic

cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket

color, multi mode fiber optic patch cord are with 50/125 or 62.5/125 fiber glass and is orange color.

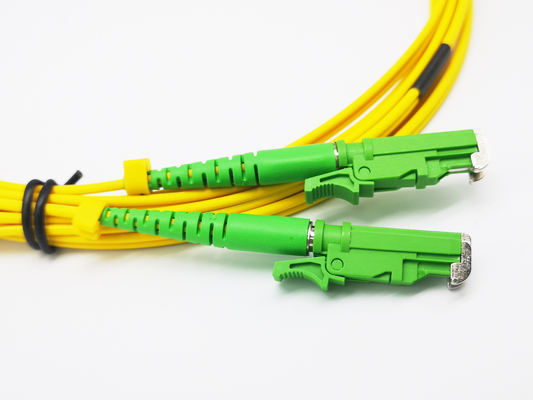

E2000 fiber optic patch cord is one of the latest style yet one of the most expensive cable.Developed

by Diamond, E2000 features a spring-loaded shutter used to protect the ferrule from dust and scratches.

E2000 fiber connectors is similar size of SC fiber connectors.


The SC fiber optic patch cord was invented by the Japanese company NTT. It is one of the most widely

used fiber optic patch cords. SC fiber optic patch cord features low cost , simplicity as well as good

durability, SC fiber optic patch cords is with a locking tab on the cable termination, it is a push and

pull type fiber optic connector.





Features

  • Low insertion loss
  • Repeat ability
  • High return loss
  • Mutual Insert performance
  • Good temperature stability
  • Strong tensile property
  • Cheap multimode fiber price,short distance transmission
  • Wide transmission bandwidth



Specification

Item

Standard,Master

Connector type

LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,

FC/APC,LC/APC.MU/APC

Duplex MTRJ/Female, MTRJ/Male

Fiber Type



9/125 SMF-28 or equivalent (Singlemade) OS1

50/125, 62.5/125 (Multimode) OM2&OM1

50/125, 10G  (Multimode) OM3

Cable Type

Simplex, Duplex (Zipcord)

Φ3.0mm, Φ2.0mm, Φ1.8mm

Φ1.6mm PVC or LSZH

Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH

Polishing Manner

UPC,SPC,APC (8°& 6°)

Insertion Loss

≤ 0.1dB (For Singlemode Master)

≤ 0.25dB (For Singlemode Standard)

≤ 0.25dB (For Multimode)

Tested by JDS RM 3750


Return Loss (For Singlemode)

UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750

Repeatability

 ±0.1dB

Operating temperature

-400C to 850C


Geometry Requirement

(For Singlemode)

Ferrule Endface Radius

7mm ≤ R ≤ 12mm (For APC)

10mm ≤ R ≤ 25mm (For Standard)

Apex Offset ≤ 30 μm (For Master)

Apex Offset ≤ 50 μm (For Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1









Order information



1. Connector type: FC, ST, SC, LC, MU, MPO, E2000, MTRJ, SMA,

2. End face: UPC PC APC

3. Cable diameter: Ф0.9mm, Ф1.6mm,Ф1.8mm, Ф2mm, Ф2.4mm, Ф3mm.

4. Fiber count: simplex, duplex, 4 core, 6 core, 8 core, 12 core or customer specified

5. Fiber types: G652B, G652D, G655, G657A1, G657A2, 50/125,um 62.5/125um,

OM3 (50/125-150), OM4 (50/125-300) etc.

6. Connector housing color: Blue (single mode PC, UPC connector), beige, grey (multimode connector),

     green (APC connector), aqua (OM3)

7. Boot color : grey,blue, green, white, red, black, green

8. Cable jacket: PVC, LSZH

9. Cable length: customized



E2000 APC to SC UPC Fiber Optic Patch Cord  Singlemode Simplex 1.8mm LSZH Riser Cable
